Description
Product Overview
Unlock the performance potential of your Ford Fiesta XR4 2.0L with the Dreamscience Stratagem iMap™ Performance Tuning Handset.
Developed by Dreamscience Motorsport in collaboration with SCT Performance, the Stratagem iMap is an advanced handheld ECU flash programming device designed to improve engine performance, throttle response, acceleration and overall driving enjoyment.
Specifically supporting the Ford Fiesta XR4 / ST150 2.0L Duratec petrol engine, the iMap allows owners to install professionally developed Dreamscience performance calibrations directly through the vehicle’s OBD-II diagnostic port.
Whether your Fiesta XR4 is completely standard, fitted with an aftermarket induction system, or upgraded with performance exhaust components, Dreamscience offers multiple tuning calibrations to suit different driving requirements and modification levels.
Unlike traditional ECU tuning methods that require a workshop visit, the Stratagem iMap provides a convenient solution for installing, changing and restoring compatible ECU calibrations from home.
Key Features & Benefits
- Plug & Play ECU Programming: Install compatible performance tunes through your vehicle’s OBD-II diagnostic port.
- Three Performance Calibrations: Race+, Track and Hyper Race+ tuning options for the Fiesta XR4 / ST150.
- Improved Throttle Response: Revised ECU calibration reduces factory throttle delays and improves responsiveness.
- Increased Power & Torque: Dreamscience-developed calibrations optimise engine performance within the capabilities of the vehicle and its modifications.
- Improved Acceleration: Revised factory torque management improves power delivery, particularly in lower gears.
- Return to Stock: Restore the original ECU calibration using the handset.
- Diagnostic Functions: Read and clear supported diagnostic trouble codes (DTCs).
- Live Data Monitoring: View and record supported engine operating parameters.
- Custom Tune Support: Compatible calibration files can be supplied electronically and loaded through a Windows PC.
- Multiple Vehicle Capability: Up to five vehicle changes are supported, subject to the device’s remaining unlocks and correct return-to-stock procedure.
Dreamscience Performance Tuning Calibrations
The Stratagem iMap supports three primary Dreamscience performance calibrations for the Ford Fiesta XR4 / ST150.
1. Race+ – Stage 1 Performance Tune
Recommended for standard vehicles and everyday performance driving.
The Dreamscience Race+ calibration is designed to improve the performance and responsiveness of the standard 2.0L Duratec engine without requiring additional mechanical modifications.
The calibration adjusts factory torque management and throttle behaviour to deliver improved acceleration and a more responsive driving experience.
Performance improvements include:
- Approximately +15 bhp (11.2 kW) over standard in Dreamscience’s published testing.
- Approximately +12 lb-ft (16.3 Nm) of additional torque.
- Improved first- and second-gear acceleration.
- Reduced factory throttle delay.
- Improved engine response throughout the rev range.
- Compatibility with standard engine hardware.
Fuel Requirement: Designed for 95 RON petrol, with higher-octane fuel potentially providing additional benefits under suitable operating conditions.
Recommended Application: Standard Fiesta XR4 / ST150 vehicles requiring improved everyday performance.
2. Track – Motorsport-Oriented Calibration
Designed for track-day and performance driving applications.
The Track calibration builds upon the Race+ tune with more aggressive torque management and throttle intervention adjustments.
This calibration is intended to provide a more direct response during hard acceleration and gear changes.
Key Benefits:
- Revised ECU torque management intervention.
- Improved acceleration response.
- Reduced factory throttle-related intervention.
- RPM-hold behaviour during gear changes.
- More consistent response during performance driving.
Fuel Requirement: Premium unleaded petrol recommended.
Recommended Application: Motorsport and closed-course track-day use.
Important: The Track calibration modifies factory torque management behaviour and may not be suitable for all driving conditions or vehicle configurations.
3. Hyper Race+ – Stage 2/3 Performance Calibration
Designed for modified Fiesta XR4 / ST150 vehicles.
The Hyper Race+ calibration has been developed for vehicles equipped with supporting performance modifications.
Typical modifications include:
- Performance cold air induction system.
- 4-2-1 performance exhaust manifold.
- Upgraded exhaust system.
- Suitable high-flow catalytic converter.
- Standard camshafts with compatible supporting modifications.
When fitted with the appropriate hardware, Dreamscience reports that vehicles can achieve approximately 185–190 bhp (138–142 kW) at the engine.
Fuel Requirement: Developed around UK 99 RON premium unleaded fuel.
Recommended Application: Modified Fiesta XR4 / ST150 vehicles with compatible induction and exhaust upgrades.
Australian Fuel Note: Local premium fuel specifications differ from UK fuels. Australian 98 RON compatibility must be confirmed for the supplied calibration before installation.
Power figures are manufacturer-reported examples and are not guaranteed. Results vary depending on mechanical condition, fuel quality, modifications and operating conditions.
Simple OBD-II Installation – No ECU Removal Required
The Dreamscience Stratagem iMap allows compatible tuning software to be installed through the factory OBD-II diagnostic connection.
Installation Procedure
- Connect the Stratagem iMap handset to the vehicle’s OBD-II diagnostic port.
- Switch the ignition on and follow the handset instructions.
- Select the appropriate Dreamscience calibration for your vehicle.
- Follow the on-screen programming procedure while maintaining stable battery voltage.
- Allow programming to finish without disconnecting the handset or interrupting vehicle power.
- Once programming is complete, follow the prompts and start the vehicle.
- Verify normal engine operation and check for diagnostic trouble codes.
The handset also allows the original ECU calibration to be restored when required, provided the device retains the necessary vehicle information.
Important: Battery support is strongly recommended during ECU programming. Never disconnect the handset or interrupt ignition and power while programming is in progress.
Advanced Diagnostic & Data Logging Functions
In addition to ECU tuning, the Dreamscience Stratagem iMap provides diagnostic and monitoring capabilities.
Diagnostic Trouble Codes
- Read supported engine diagnostic trouble codes.
- Clear diagnostic fault codes after the underlying issues have been rectified.
- Assist with basic troubleshooting of engine management faults.
Live Engine Data Monitoring
Monitor supported ECU parameters, which may include:
- Engine RPM.
- Engine coolant temperature.
- Intake air temperature.
- Throttle position.
- Engine load.
- Other available diagnostic parameters.
Available parameters depend on ECU strategy and vehicle support.
Custom Tuning & Software Updates
The iMap can accept compatible custom calibration files supplied by Dreamscience or authorised tuning providers.
Custom tune files can be transferred to the handset through a Windows computer using the appropriate Dreamscience/SCT device updater.
This provides flexibility for future calibration changes as vehicle modifications and supported tuning requirements evolve.
Vehicle Compatibility
Primary Application:
- Ford Fiesta XR4 2.0L Duratec Petrol.
- Ford Fiesta ST150 2.0L Duratec Petrol.
- Ford Fiesta Mk6 ST150 platform, approximately 2005–2008/2009 depending on market.
Transmission: Factory manual transmission.
ECU: Supported factory Ford ECU strategies only.
Important Compatibility Notice:
The Stratagem iMap is not compatible with ST150 vehicles that are already running certain aftermarket ECU calibrations, including Mountune software, unless the original compatible Ford ECU software has first been restored.
Please contact Bullet Performance Racing with your vehicle details before purchase if the ECU has previously been modified or reprogrammed.
Package Contents
Typical Stratagem iMap package includes:

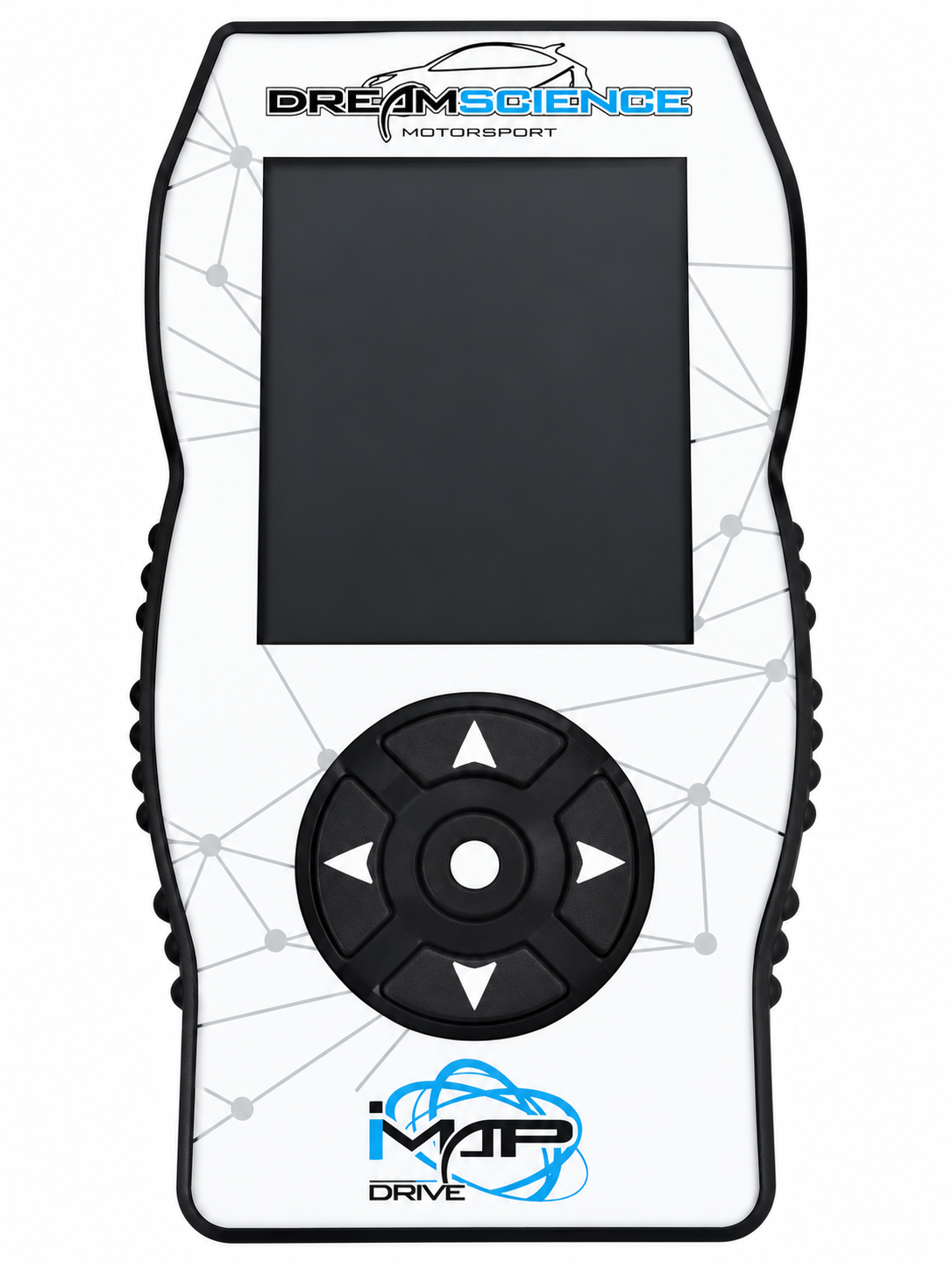

- Dreamscience Stratagem iMap handheld programming device.
- OBD-II vehicle connection cable.
- USB computer connection cable.
- Access to applicable Dreamscience performance calibrations.
- Device programming instructions.
Package contents and calibration availability should be confirmed at the time of purchase.
Important Tuning & Warranty Disclaimer
Vehicle Condition: All performance calibrations are intended for mechanically sound vehicles with correctly functioning ignition, fuel delivery, cooling and engine management systems. Existing mechanical or electrical faults must be rectified before ECU programming.
Fuel Requirements: Customers must use fuel that meets the specified calibration requirements. Fuel sold in Australia may differ from the fuel grades used during overseas calibration development.
Modification Compatibility: Performance calibrations must match the actual vehicle configuration. Vehicles fitted with modified camshafts, induction systems, injectors or other significant performance components may require additional tuning.
Power Figures: All quoted performance gains are indicative manufacturer-reported results and are not guaranteed.
Emissions & Road Use: Some performance calibrations and associated modifications may not comply with Australian road-use, emissions or motorsport regulations. The customer is responsible for ensuring the vehicle remains compliant with applicable requirements.
Manufacturer Warranty: ECU tuning may affect vehicle manufacturer warranty coverage. Restoring the factory calibration does not guarantee that previous tuning activity cannot be detected.
Software & Licensing: The handset must be correctly returned to stock before being transferred to another supported vehicle. Vehicle change limits, software licensing restrictions and compatibility requirements apply.
Returns: Software-licensed or vehicle-locked devices may have return limitations, subject to Australian Consumer Law and the applicable supplier terms.
Why Buy From Bullet Performance Racing?
Bullet Performance Racing (BPRacing) specialises in Ford ECU performance tuning, diagnostics and electronic module programming.
With extensive experience in Ford engine management systems and aftermarket tuning technology, we can assist customers with identifying suitable tuning hardware and selecting compatible performance calibrations.
Our services include:
- Ford ECU tuning and programming.
- SCT handheld tuning device support.
- Performance calibration advice.
- Diagnostics and troubleshooting.
- Vehicle modification and tune compatibility guidance.
- Remote and mail-order tuning services.
Bullet Performance Racing – Ford Performance Tuning Specialists
Website: www.bulletperformanceracing.com.au
Vehicle compatibility and calibration availability should be confirmed before ordering.
