GT3582 Style Turbocharger – Generic Aftermarket Replacement
Suit Ford BA/BF XR6 Turbo & SY/SZ Territory Turbo Applications
This generic aftermarket GT3582R-style turbocharger is designed as a budget replacement option for compatible Ford Barra turbo applications. Featuring a 360° thrust journal bearing design with water and oil cooling, this unit is best suited to standard or near-factory boost applications where an affordable replacement turbo is required.
This turbo is not a genuine Garrett product and not an OEM Ford turbocharger. It is intended for customers looking for a cost-effective replacement or repair solution.
Features:
✔ Generic aftermarket GT3582R-style turbocharger
✔ 360° thrust journal bearing design
✔ Water & oil cooled core
✔ T3 turbine flange
✔ 5-bolt exhaust outlet
✔ Includes gasket kit
Compressor Specifications:

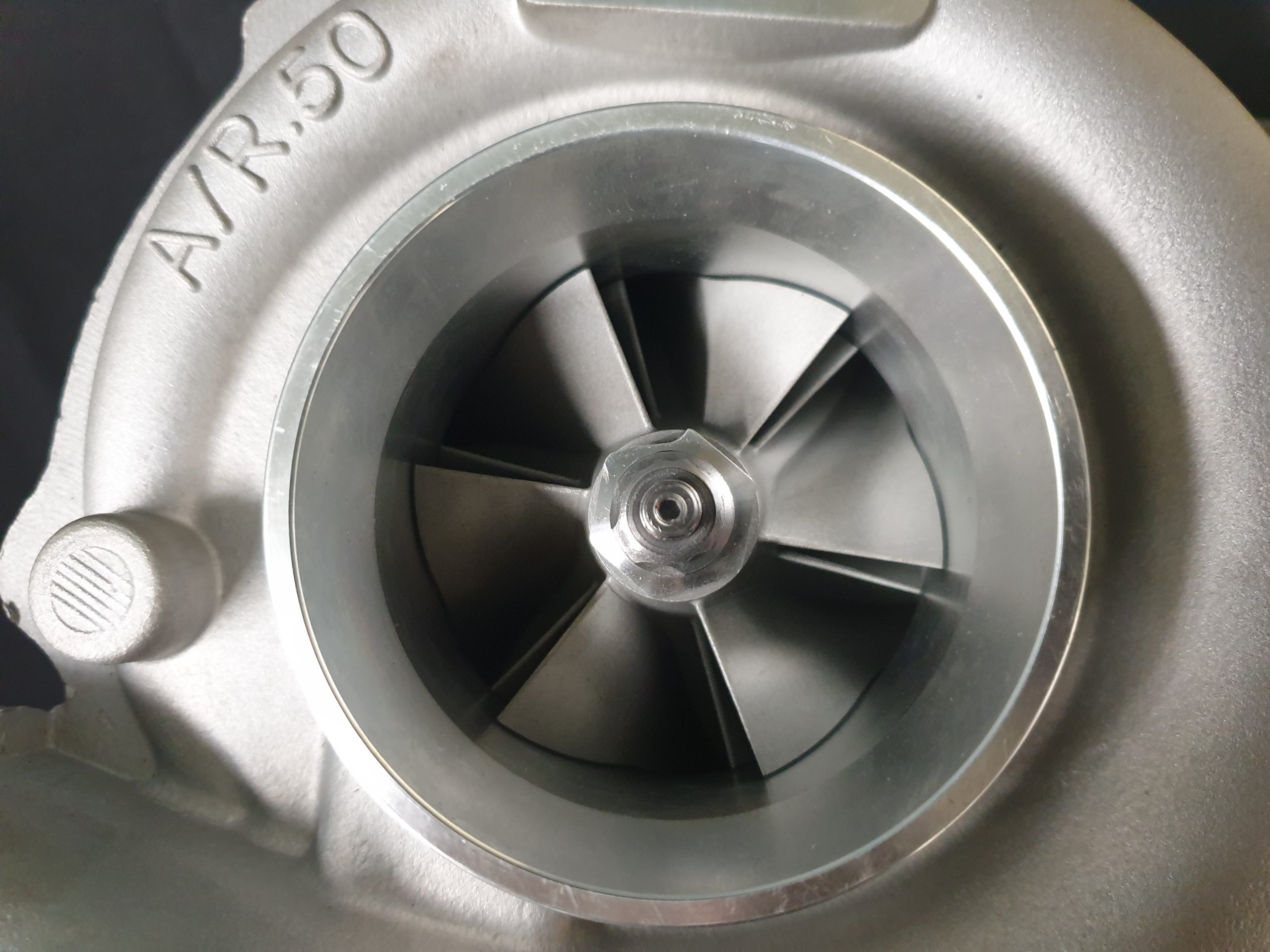

- Compressor A/R: 0.50
- Air Inlet: 3.00″
- Air Outlet: 2.00″
- Inducer: 61.40mm
- Exducer: 82.00mm
Turbine Specifications:

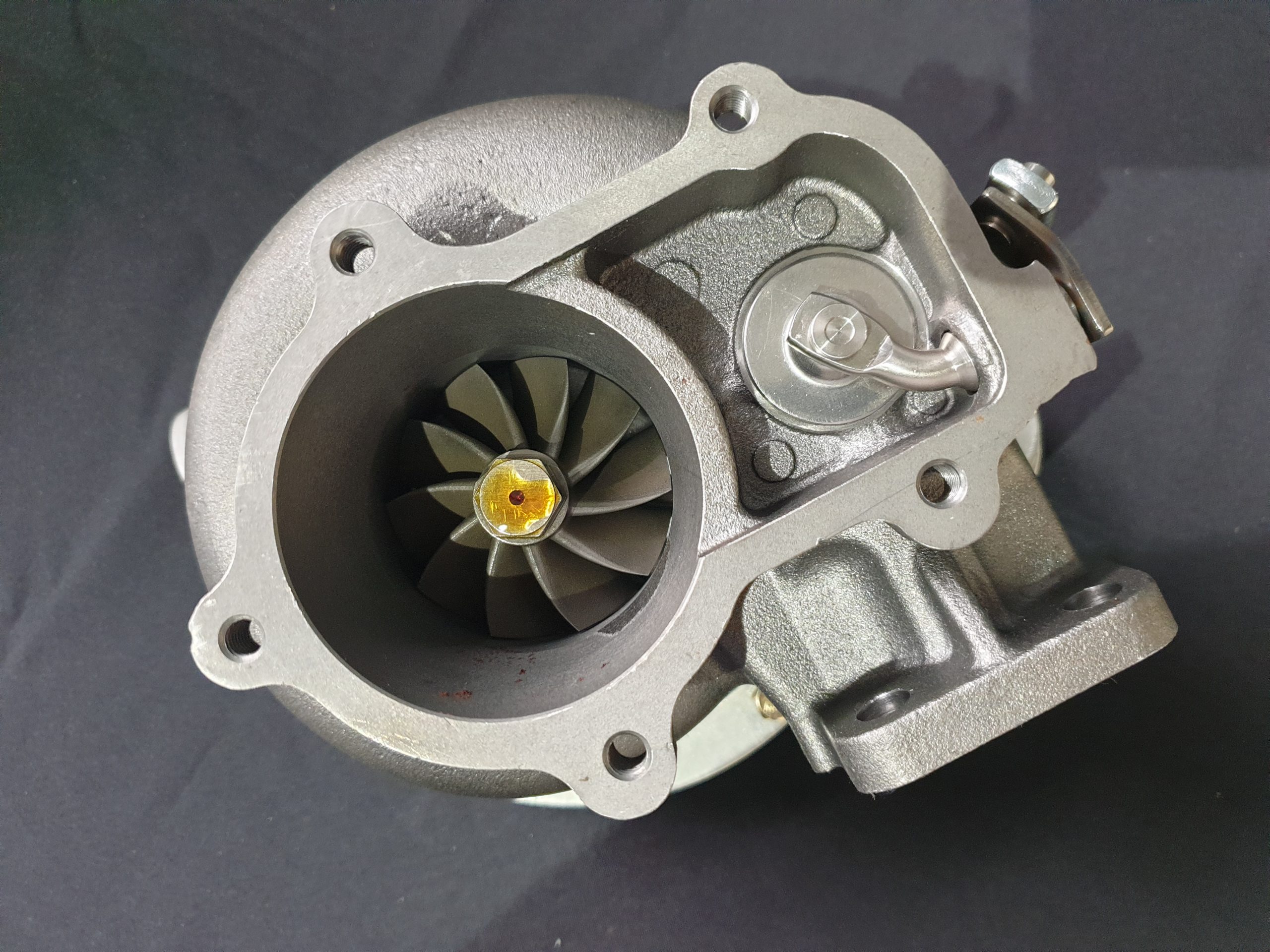

- Turbine A/R: 1.06
- Flange Type: T3
- Exhaust Outlet: 5-Bolt
- Inducer: 67.75mm
- Exducer: 62.30mm
Vehicle Compatibility:
- Ford Falcon BA XR6 Turbo
- Ford Falcon BF XR6 Turbo
- Ford Territory SY Turbo
- Ford Territory SZ Turbo
Important Fitment Notes:
- Not a direct OEM replacement. Installation modifications may be required depending on your setup.
- Territory applications: Factory actuator bracket may need to be transferred from original turbocharger and housing clocked during installation.
- Oil feed/drain, water lines, actuator setup, dump pipe, and manifold compatibility should always be checked before installation.
Important Usage Notice:
This turbocharger is recommended for standard boost or near-factory boost levels only.
Not recommended for high boost, race, or extreme performance applications without independent inspection, balancing verification, and professional tuning.
Warranty & Installation:
Professional installation is strongly recommended. Turbocharger failure caused by incorrect installation, oil contamination, boost control faults, overspeeding, or tuning-related issues is not covered under warranty.
Need tuning or installation advice? Contact Bullet Performance Racing.
