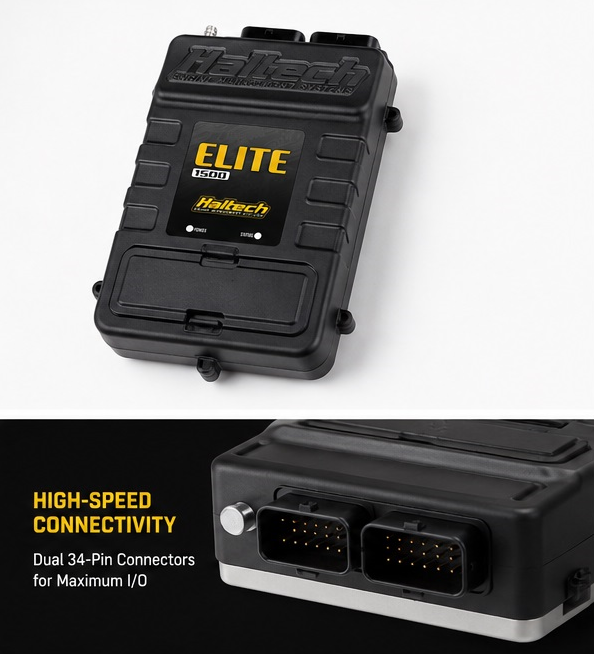

Haltech Elite 1500 ECU + Basic Universal Wire-In Harness Kit (2.5m / 8′)

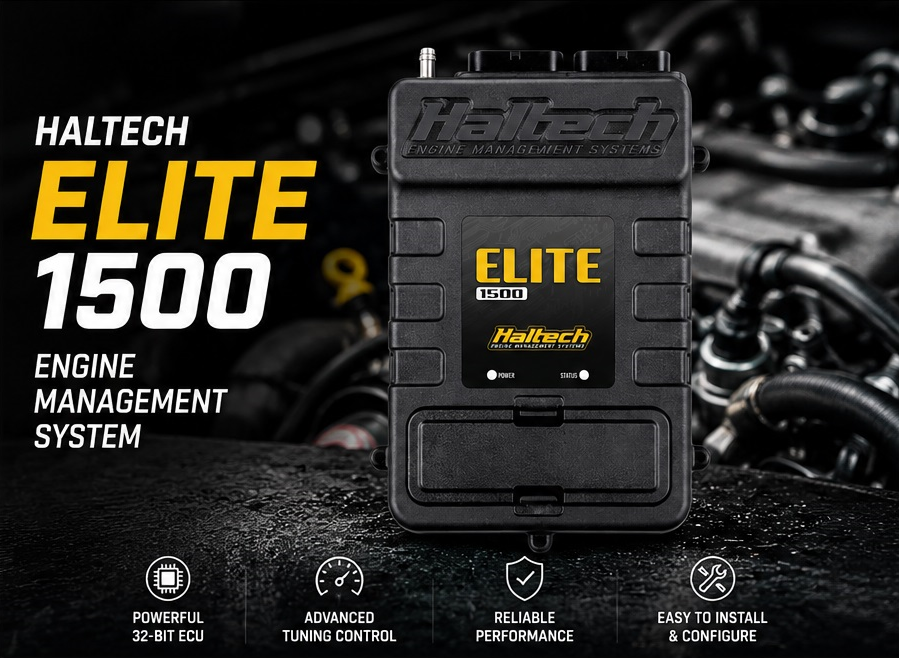

The Haltech Elite 1500 is a powerful two-connector standalone ECU designed for modern performance engines requiring advanced engine management capabilities. Recommended for 4-cylinder, drive-by-wire, variable camshaft timing, and 2-rotor applications, the Elite 1500 provides the flexibility and control demanded by professional tuners and performance enthusiasts.
Featuring a robust environmentally sealed water-resistant enclosure, the Elite 1500 offers advanced features including drive-by-wire throttle control, intake and exhaust camshaft control, dual-channel knock control, short and long-term learning strategies, and support for naturally aspirated or forced induction engines.
Paired with Haltech’s intuitive Nexus Software Programmer (NSP), the Elite 1500 delivers industry-leading functionality and ease of use, making it one of the most popular standalone ECUs available.
The included Basic Universal Wire-In Harness features colour-coded and clearly labelled wires for simplified installation, making it ideal for custom wiring projects, engine swaps, motorsport applications, and EFI conversions.

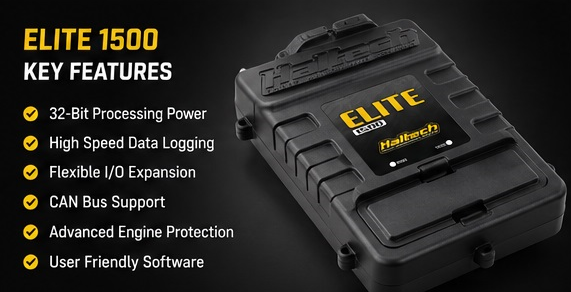

Elite 1500 ECU Features
✔ Supports 1 to 12 Cylinder Engines
✔ Supports 2 Rotor Engines
✔ Drive-By-Wire (DBW) Throttle Control
✔ Intake & Exhaust Variable Camshaft Control
✔ Dual Channel Knock Control
✔ Short-Term & Long-Term Learning Functions
✔ Integrated MAP Sensor
✔ Naturally Aspirated or Forced Induction Compatible
✔ TPS, MAP or MAF Load Sensing Strategies
✔ CAN Bus Expansion Capability
✔ USB Laptop Communication
✔ Fully Supported by Haltech NSP Software
ECU Specifications
Fuel & Ignition Control
- 4 x Fuel Injection Outputs
- 4 x Ignition Outputs
- Supports:
- Sequential Injection
- Semi-Sequential Injection
- Batch Fire Injection
- Multipoint Injection
- Staged Injection
Inputs & Outputs
- 12 x Digital Outputs
- 10 x Analogue Voltage Inputs
- 4 x Synchronised Pulsed Inputs
- 3 x Dedicated Inputs:
- Knock Sensor
- Ignition Switch
- Onboard MAP Sensor
Engine Position Inputs
- 2 x Dedicated Engine Position Inputs
- Extensive Trigger Pattern Support
Communications
- USB Laptop Communication
- CAN Bus Expansion
- Up to 45 Additional Input & Output Channels via CAN Devices
Universal Wire-In Harness Features
The included Basic Universal Wire-In Harness is designed for custom installations where maximum flexibility is required.
Harness Benefits
✔ 2.5m (8′) Harness Length
✔ Colour-Coded Wiring
✔ Clearly Labelled Conductors
✔ Direct Connection to Elite ECU
✔ Ideal for Engine Swaps & EFI Conversions
✔ Suitable for Dedicated Motorsport Applications
✔ Simplifies Custom Wiring Installations
The harness is supplied with ECU connectors pre-installed and flying leads at the opposite end, allowing installers to customise wiring to suit their specific application.
Detailed wiring diagrams are included and correspond directly with the wire colours and labels to ensure a straightforward installation process.
Suitable Applications
- Ford Barra BA BF FG FGX
- Ford Mustang Coyote
- Holden LS Series Engines
- Toyota 1JZ & 2JZ
- Nissan RB20, RB25 & RB26
- Nissan SR20DET
- Mazda Rotary Engines
- Honda K-Series
- Custom Race Cars
- Street Performance Vehicles
- Engine Swaps & EFI Conversions
Kit Contents
- Haltech Elite 1500 ECU
- Basic Universal Wire-In Harness (2.5m / 8′)
- ECU Connectors
- USB Communication Cable
- Installation Documentation
- Haltech NSP Software Access
