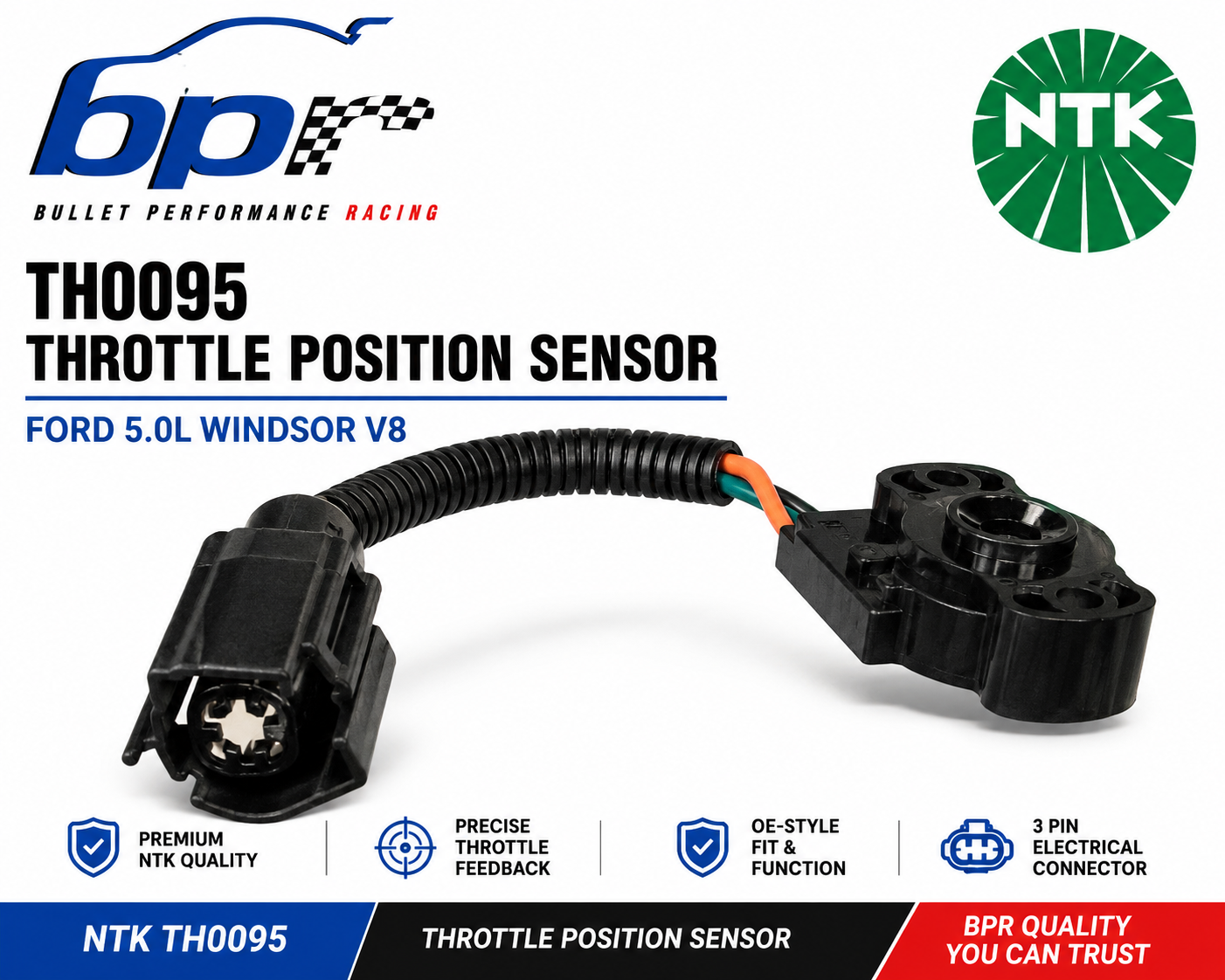

NTK TH0095 Lower Throttle Position Sensor TPS – Ford Falcon EB ED EF EL XH 5.0L Windsor V8

Description

The NTK TH0095 Lower Throttle Position Sensor (TPS) is a premium replacement sensor suitable for selected Australian Ford Falcon, Fairmont, Fairlane, LTD and XH models fitted with the 5.0L Windsor V8.

NTK is part of the NGK group and is well known for high-quality engine management sensors and OE-style replacement components. The TH0095 is suited to Ford Windsor EFI applications using the lower throttle-position sensor arrangement and is an ideal replacement where dependable signal accuracy and long-term reliability are important.

The TPS monitors throttle blade position and sends a variable voltage signal to the ECU. This information is used for fuel delivery, ignition control, idle strategy, acceleration enrichment and engine load calculations.

A faulty TPS can cause hesitation, unstable idle, flat spots, surging, poor throttle response or incorrect throttle-position data during diagnosis.

---

Vehicle Applications

Suitable for selected:

• Ford Falcon EB 5.0L V8
• Ford Falcon EB II 5.0L V8
• Ford Falcon ED 5.0L V8
• Ford Falcon EF 5.0L V8
• Ford Falcon EL 5.0L V8
• Ford Falcon XH 5.0L V8
• Ford XR8 variants
• Ford Fairmont 5.0L V8
• Ford Fairlane 5.0L V8
• Ford LTD 5.0L V8

Fitment depends on throttle-body configuration.

Important Fitment Note

This listing is for the LOWER throttle position sensor.

Some Ford Falcon Windsor V8 applications also use a separate upper TPS, particularly certain automatic-transmission configurations.

The upper and lower sensors are different parts. Compare the original sensor, connector and mounting arrangement before ordering.

---

Cross Reference / Interchange Numbers

---

Product Features

• Premium NTK / NGK engine-management sensor
• Part Number: TH0095
• Lower throttle-body TPS
• Suits selected Ford 5.0L Windsor V8 EFI applications
• 3-pin electrical connection
• OE-style replacement design
• Accurate throttle-position feedback
• Designed for stable, consistent sensor output
• Suitable replacement for worn or intermittent original sensors
• Quality alternative to cheaper generic aftermarket TPS units

---

Why Choose NTK?

NTK is a well-established sensor manufacturer with a strong reputation in oxygen sensors, engine-management components and electronic sensing technology.

For older Ford Windsor EFI systems, TPS signal quality is important because worn sensor tracks can cause intermittent voltage dropouts that may be difficult to identify during normal fault diagnosis.

The NTK TH0095 is a good option for customers wanting a higher-quality replacement sensor rather than a budget aftermarket unit.

---

Symptoms of a Faulty Throttle Position Sensor

A worn or failing TPS may cause:

• Hesitation on acceleration
• Flat spots
• Poor throttle response
• Surging
• Hunting idle
• Unstable idle
• Stalling
• Incorrect fueling
• Poor drivability
• Check Engine light
• Erratic throttle-position readings
• Sensor voltage dropouts during throttle movement

---

Installation Information

The TPS mounts directly to the throttle-body shaft and should be installed in the same orientation as the original sensor.

After installation, throttle-position voltage should be checked with suitable diagnostic equipment or a digital multimeter.

The sensor output should increase smoothly from closed throttle through to wide-open throttle without sudden voltage dropouts, spikes or dead spots.

Where applicable, closed-throttle voltage should be adjusted in accordance with Ford service specifications.

---

Product Specifications

Brand: NTK / NGK
Part Number: TH0095
Product Type: Throttle Position Sensor
Position: Lower
Engine: 5.0L Windsor V8
Connector: 3 Pin
Mounting Location: Throttle Body
Quantity: 1
Condition: New
