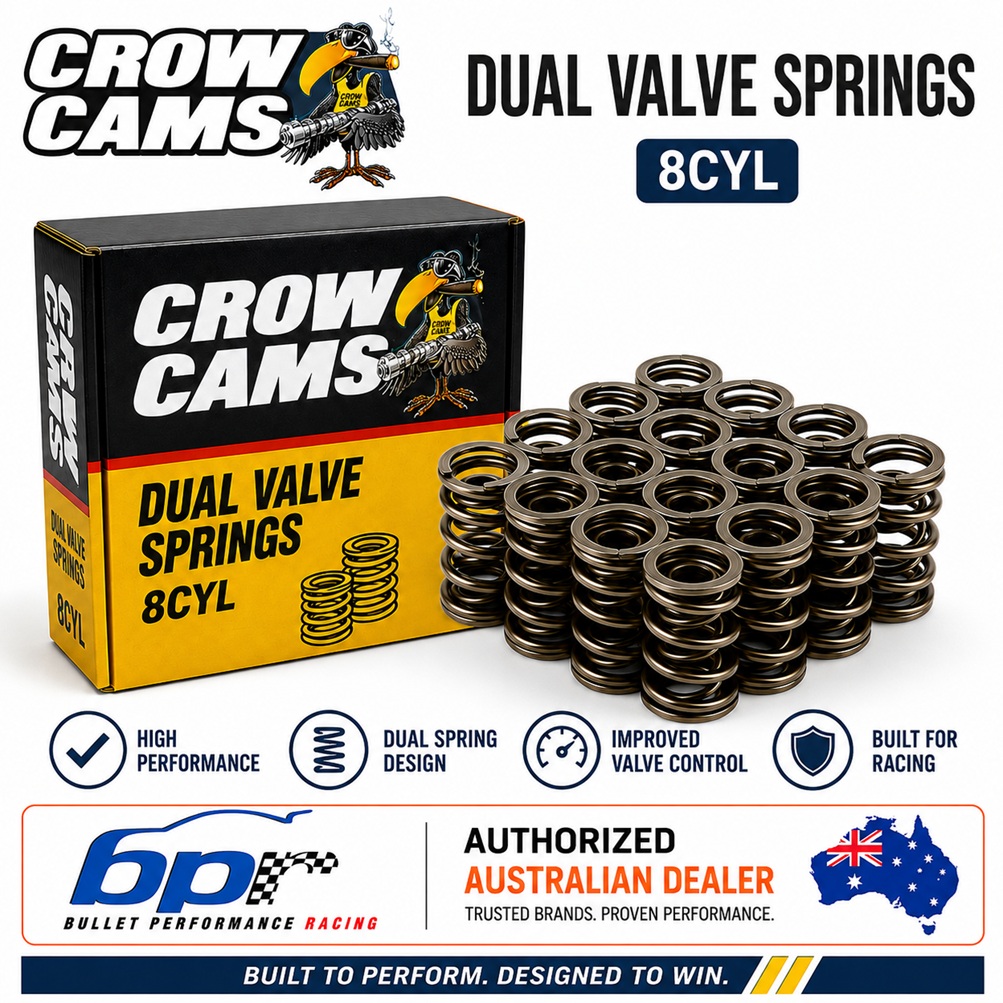

Crow Cams 7333-16 Double Valve Springs – Windsor & Cleveland V8
Crow Cams Part Number: 7333-16
The Crow Cams 7333-16 Double Valve Spring Kit is a premium performance valve spring package designed for Ford Windsor and Cleveland V8 engines. Ideal for high-performance hydraulic and solid roller camshaft applications, these race-spec dual springs provide excellent valve control at elevated RPM and are suitable for aggressive camshaft profiles up to .650″ valve lift.
Commonly used in EB, ED, EF, EL and AU Falcon Windsor V8 engines, as well as Ford Cleveland V8 combinations requiring increased spring pressure and improved valvetrain stability.
Features
✔ High-performance dual valve spring design
✔ Suits Windsor and Cleveland V8 applications
✔ Excellent valve control at high RPM
✔ Compatible with hydraulic roller, hydraulic flat tappet and solid camshaft combinations
✔ Suitable for camshafts up to .650″ lift
✔ Manufactured by Crow Cams Australia
Specifications
| Specification | Value |
|---|---|
| Installed Height | 1.800″ |
| Seat Pressure | 130 lbs |
| Pressure @ .500″ Lift | 300 lbs |
| Outer Spring OD | 1.456″ |
| Outer Spring ID | 1.070″ |
| Inner Spring ID | 0.810″ |
| Free Length | 2.380″ |
| Solid Height | 1.100″ |
| Maximum Valve Lift | .650″ |
Recommended Components
Retainers:
- Crow 11700-XR8
- Crow 11710
- Crow 12706-16 (Cleveland)
Locks:
- Crow 4133-16
Applications
- Ford EB Falcon Windsor V8
- Ford ED Falcon Windsor V8
- Ford EF Falcon Windsor V8
- Ford EL Falcon Windsor V8
- Ford AU Falcon Windsor V8
- Ford Windsor 302 / 351 V8
- Ford Cleveland 302 / 351 V8
Package Contents
- 16 x Crow Cams Dual Valve Springs
