Dreamscience Focus ST MK4 – Cold Air Intake System
The Dreamscience Cold Air Intake System is truly a revolutionary kit. Designed to maximize the performance of your FOCUS ST MK4 – 2.3L engine, it is the only 76mm kit engineered to a superior finish. Product development is a large part of Dreamscience’s heritage. This kit is designed to replace the OEM intake, as a system with maximum airflow efficiency. Physics engineers have designed and developed our kits in-house, with over a decade of experience in designing and manufacturing high performance intake systems.

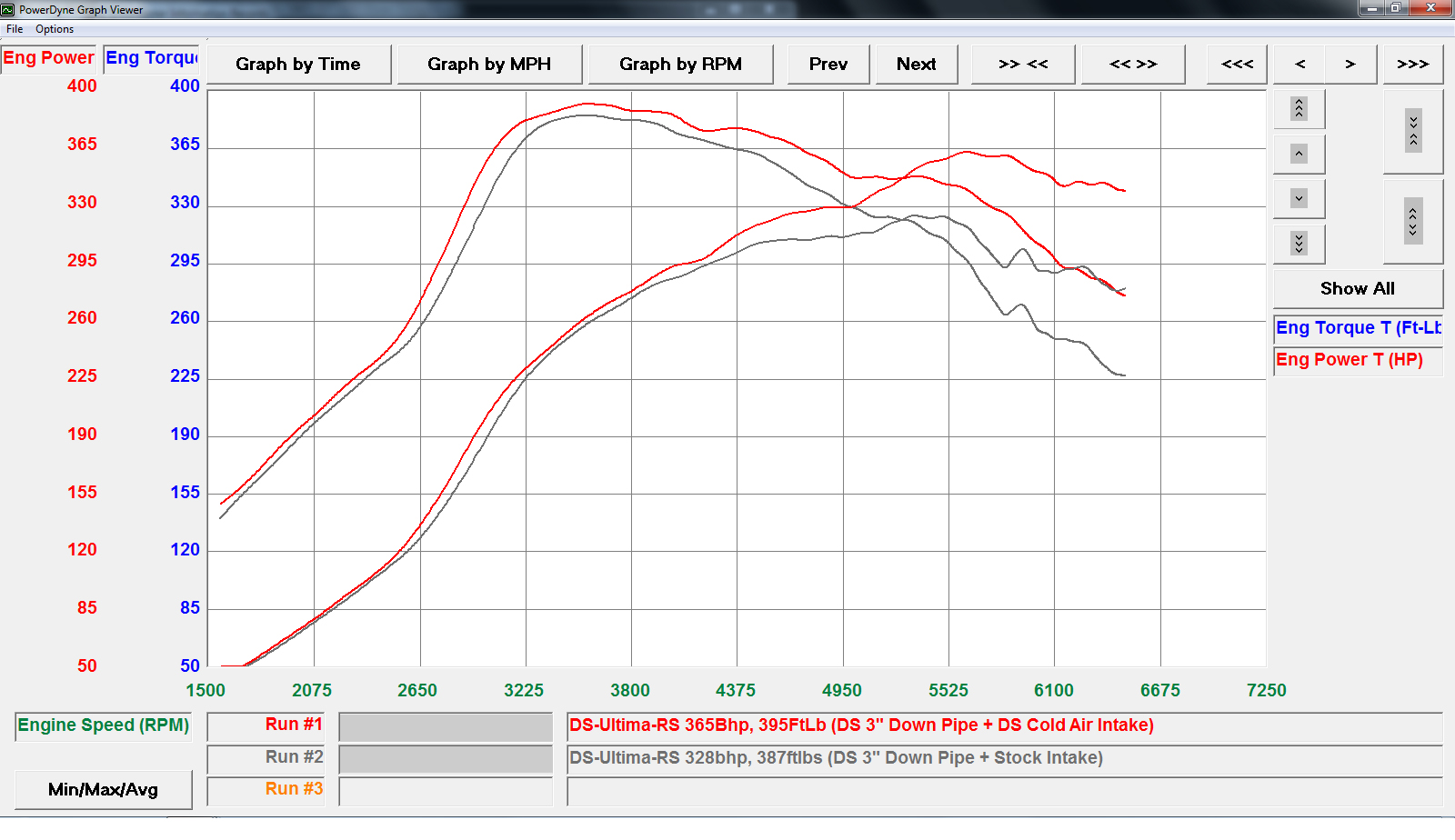

Using our state-of-the-art four-wheel drive Mustang dyno, the latest live data logging software, and CAD designs software to carry out multiple CFD analyses, we have now created and finalised the new Dreamscience Focus ST intake. As a tuning company, our key interest is creating an intake platform, which extracts maximum performance from aftermarket software, while boasting excellent performance with the standard software.
Ford’s complex design of the Focus ST MK4 intake does not allow for a direct route to the turbo. Therefore, any aftermarket system will include inevitable “bends” and “indents”, to fit correctly, which we took into account. Firstly, we specifically designed our system to have aviation-grade aluminium on the bends where possible, instead of silicone. This decision was more expensive, but essential to minimise airflow turbulence and resistance. This allows for faster flowing cold air, following the most efficient route to the turbo. Secondly, we’ve avoided using any unnecessary acute or right-angle bends in the design, to further promote airflow efficiency. Thirdly, we have used uniformed pipe size, and unlike other kits, we have avoided using expansion chambers. This is because expansion chambers can cause part throttle flat spots, and hesitation. Finally, to avoid low speed heat soak, no part of our kit is between the radiator and block.

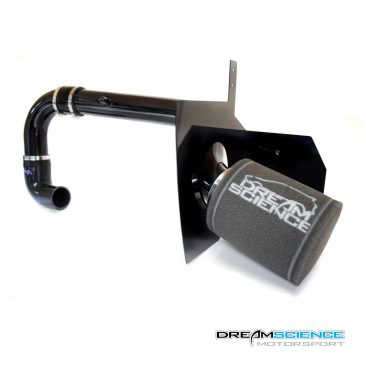

Our kit comes with a 76mm top pipe that connects with a straight silicone joiner to the 76mm secondary pipe. This allows for reduced air turbulence at the connecting point. We specifically use a “drop down “silicone hose connecting our kit the turbo, simulating a “venturi” design, helping to accelerate air to the turbo. Creating expansion and compression of the air molecules causes the pressure inside the hose to change – providing more convenient final air vs temperature vs pressure delivery to the turbo. Thus, creating a unique power delivery with a turbo note/chatter that sounds excellent. *As shown in the product image*
The Dreamscience Cold Air Intake System is designed for standard, partially and fully modified cars. In all cases, this upgrade will make a noticeable difference to the overall performance and sound of the engine, no matter the stage of your vehicle.
FEATURES
- 76MM TOP PIPE – SMOOTH / SHINY GLOSS BLACK FINISH X1
- 76MM BOTTOM PIPE – SMOOTH / SHINY GLOSS BLACK FINISH X1
- CENTRE SILICONE HOSE PIPE CONNECTOR WITH DS LOGO 76 X 52 MM –
- VENTURI DROP DOWN SILICONE HOSE CONNECTOR (45 DEGREES) X1
- DREAMSCIENCE DRY CHARGE FILTER (LARGE)
