Ford Performance Gen 1 Coyote / Miami 5.0L Ti-VCT Camshaft Drive Kit

Ford Performance Gen 1 Coyote / FG FGX Miami 5.0L Ti-VCT Camshaft Drive Kit

The Ford Performance Gen 1 Coyote / Miami 5.0L Ti-VCT Camshaft Drive Kit is a complete timing drive service package designed for 5.0L DOHC 4-valve Ti-VCT engines.

Originally developed for the 2011–2014 Gen 1 Mustang Coyote engine, this kit is also suitable for Australian Ford Falcon and FPV Miami 5.0L applications, including FG and FGX variants.

It is an ideal solution for engine rebuilds, timing system overhauls, preventative maintenance, or replacement of worn timing drive components.

Using genuine Ford Performance new-production components ensures correct fitment, timing accuracy, durability and compatibility with the factory Ti-VCT system.

Vehicle Applications

Ford Mustang – Gen 1 Coyote

• 2011–2014 Ford Mustang GT
• 5.0L DOHC 4V Ti-VCT Coyote
• Gen 1 Coyote engine platform

Ford Falcon / FPV – Miami 5.0L

• FG Falcon / FPV
• FGX Falcon
• 5.0L DOHC 4V Ti-VCT Miami
• 315 kW variants
• 335 kW variants
• Applicable supercharged Miami engine configurations

This makes the kit particularly suitable for Australian Miami engine rebuilds where a complete, matched timing drive package is preferred over replacing individual components separately.

Kit Includes

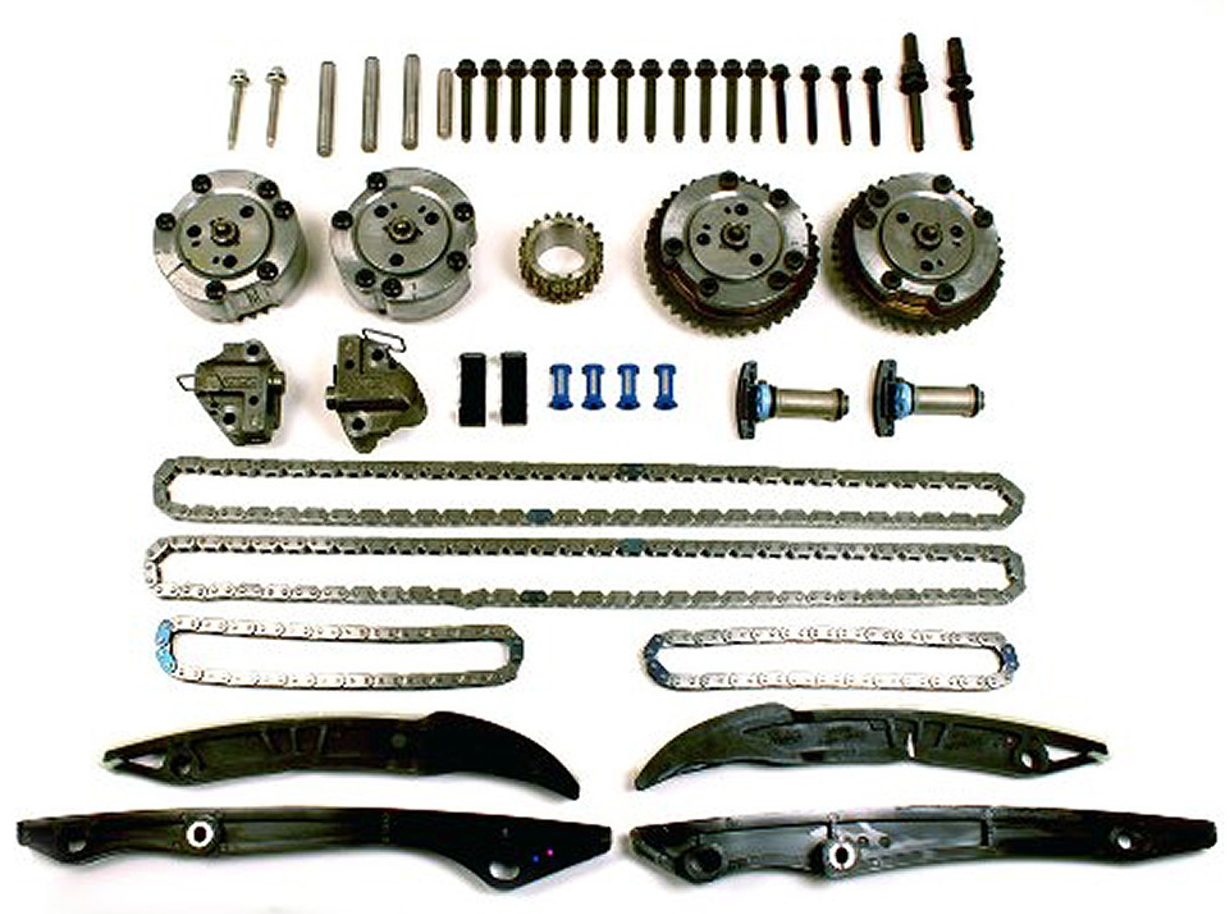

The kit contains new-production timing drive components including:

• Primary timing chains
• Secondary timing chains
• Timing chain guides
• Timing chain tensioner arms
• BOSS 302 Mustang primary timing chain tensioners
• Secondary timing chain tensioners
• Camshaft Ti-VCT phasers
• Camshaft phaser bolts
• Crankshaft sprocket
• Dowel pin
• Associated timing drive fasteners

BOSS 302 Primary Chain Tensioners

A key feature of this kit is the inclusion of the BOSS 302 Mustang primary timing chain tensioners.

These are commonly preferred for performance and engine rebuild applications and form part of the complete Ford Performance timing drive package.

For Miami and Coyote engines undergoing a full rebuild, replacing the timing chains, guides, tensioners and phasers together helps ensure the complete timing system is returned to a known service condition.

Ti-VCT Camshaft Phasers Included

The kit includes replacement camshaft Ti-VCT phasers and mounting bolts.

The Ti-VCT system continuously adjusts camshaft timing during engine operation, making correct cam phaser operation critical to:

• Camshaft timing control
• Engine performance
• Idle quality
• Torque delivery
• Emissions control
• Overall engine reliability

Worn or damaged phasers can contribute to timing-related faults, abnormal engine noise and inconsistent camshaft control.

Ideal for Engine Rebuilds

This kit is well suited to:

• Complete Coyote engine rebuilds
• Miami engine rebuilds
• Timing chain replacement
• Timing system overhaul
• High-kilometre engines
• Performance engine builds
• Preventative maintenance
• Replacement following timing drive wear or failure

Where an engine is already disassembled, replacing the complete timing drive system can be more cost-effective than reusing ageing chains, guides, tensioners or phasers.

Gen 1 Coyote / Miami Compatibility

The Australian Miami engine is based on Ford’s Coyote architecture and shares key timing drive components with the Gen 1 Coyote platform.

This kit is suitable for applicable FG and FGX Miami 5.0L engines, including the commonly encountered 315 kW and 335 kW variants.

As with all engine components, final compatibility should be confirmed against the vehicle, engine configuration and existing components before installation.

Later Coyote Engines

This kit is intended for Gen 1 Coyote / compatible Miami applications.

For later-generation Coyote engines:

• 2015–2017 Gen 2 Coyote: See Ford Performance M-6004-A5015
• 2018 and later Gen 3 Coyote: See Ford Performance M-6004-A5018 where applicable

Later Coyote engines use revised timing drive components and should not be assumed to interchange with Gen 1 components.

Product Specifications

Part Type: Engine – Timing Drive Related
Engine Family: Ford Coyote / Miami 5.0L DOHC 4V Ti-VCT
Application: Gen 1 Coyote / FG-FGX Miami
Warranty Availability: Not Available
Package Dimensions: 12.5″ × 7.5″ × 13.5″
Package Weight: 20.05 lb
UPC: 756122000939
Country of Origin: United States

Important Installation Note

Professional installation is recommended.

Correct engine timing procedures, camshaft locking procedures, torque specifications and Ti-VCT setup must be followed during installation.

Before fitting, all components should be inspected and compared against the original engine components to confirm correct application.

For rebuilt, modified or high-performance engines, the condition of the oiling system, oil pressure, camshafts, cylinder heads and associated valvetrain components should also be checked before final assembly.

Why Use a Complete Timing Drive Kit?

Replacing the complete timing drive assembly offers several advantages over changing only one failed component:

• Matched timing drive components
• New chains and guides
• New primary and secondary tensioners
• New Ti-VCT phasers
• Reduced
