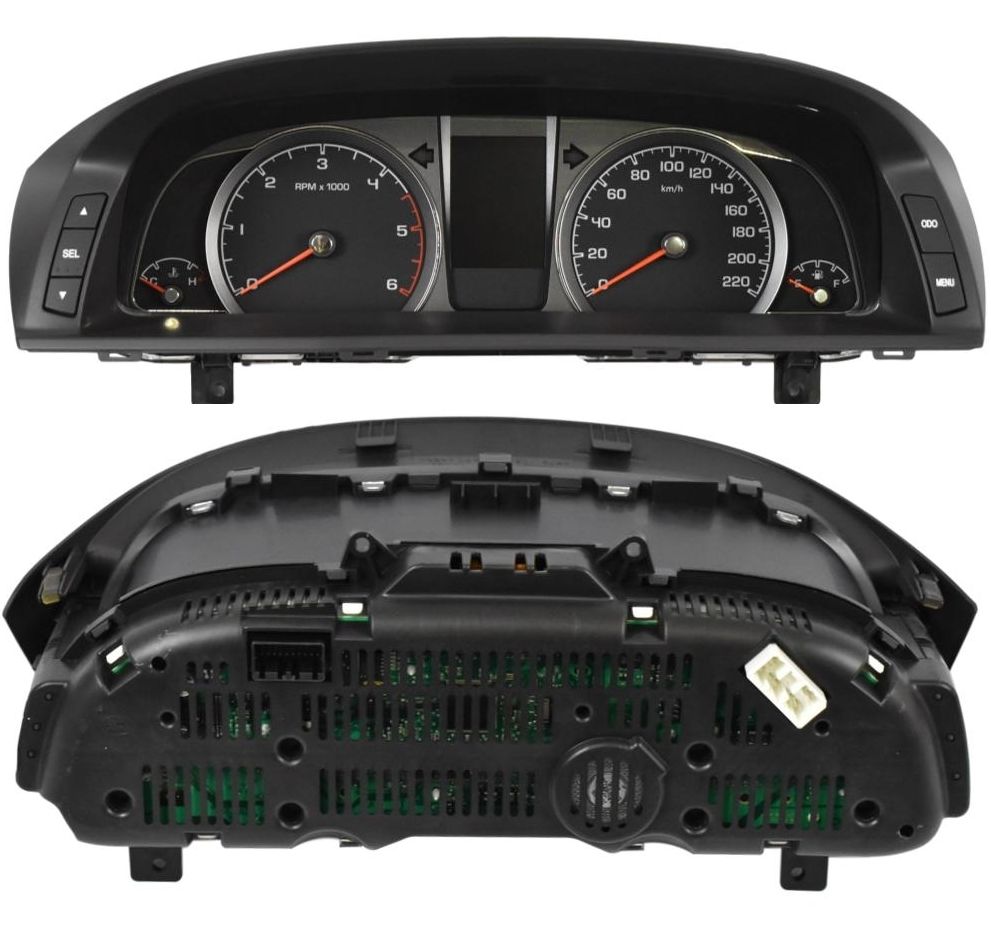

Ford Territory SZ MkII 2.7L Diesel Instrument Cluster – Genuine Ford IPC ER7Z-10849-DC – TS & Titanium

Brand New Genuine Ford Instrument Panel Cluster

Brand new genuine Ford replacement Instrument Panel Cluster (IPC) to suit selected Ford Territory SZ MkII 2.7L V6 Turbo Diesel TS and Titanium models.

Genuine Ford Part Number: ER7Z-10849-DC
Search / Interchange Number: ER7Z10849DC

These genuine Ford clusters are becoming increasingly difficult to source new. BPR has secured limited genuine OEM stock for customers requiring a new replacement rather than a used, repaired or previously programmed instrument cluster.

Once current genuine Ford stock is exhausted, future availability may be limited.

Vehicle Fitment

Suits:

• Ford Territory SZ MkII / SZ2
• 2.7L V6 Turbo Diesel
• TS
• Titanium
• Approximate build range: 14/10/2014 to 08/2016

Important Fitment Information

This cluster is intended for applicable SZ MkII Diesel TS and Titanium models.

Do not order solely based on the vehicle being an SZ MkII diesel.

Please confirm the original instrument cluster part number or provide your VIN before ordering if you are unsure of compatibility.

This listing is for ER7Z-10849-DC applications and does not replace other SZ MkII cluster variants such as ER7Z-10849-BC where a different specification is required.

Genuine Ford OEM Replacement

Unlike used dismantled clusters, this unit is supplied as a brand new genuine Ford OEM component.

Benefits include:

• Brand new genuine Ford component
• No unknown donor vehicle history
• No previous odometer or configuration data from another vehicle
• No existing LCD, gauge, illumination or communication faults associated with used clusters
• Genuine Ford fit, finish and display quality
• Correct OEM connector and mounting arrangement
• Ideal replacement for failed, damaged or non-communicating instrument clusters
• Professional programming and configuration services available through BPR
• Limited genuine Ford stock

Programming & Configuration Required

This instrument cluster is supplied as an unprogrammed genuine Ford replacement unit and is not plug-and-play.

Vehicle-specific configuration and stored data must be correctly programmed or transferred to the replacement cluster before normal operation.

Depending on the vehicle and condition of the original cluster, programming may include:

• IPC vehicle configuration
• Original cluster data transfer
• Odometer data transfer or correction where applicable
• EEPROM cloning
• Data recovery from the original cluster
• Immobiliser / PATS procedures where required
• Module configuration
• Diagnostic verification after installation

BPR provides professional Ford instrument cluster programming, cloning, EEPROM data transfer and bench testing services.

If the original cluster still communicates or can be read successfully, its vehicle-specific data can often be transferred to the replacement unit.

If the original cluster does not communicate through normal diagnostic or bench methods, additional direct processor or EEPROM-level data recovery may be required.

Programming & Service Pricing

Service	Price inc GST
New Genuine Ford ER7Z-10849-DC Instrument Cluster	$999
Standard IPC EEPROM Cloning / Programming	$395
Cluster + Standard Programming	$1,394
Advanced Direct Data-Recovery Surcharge, if required	+$220

Standard programming applies where the original instrument cluster can be read using normal diagnostic or bench methods.

The Advanced Direct Data-Recovery Surcharge applies only where the original cluster does not communicate normally and requires case opening and direct EEPROM or processor-level access for data recovery.

For standard cloning/programming, the original instrument cluster must normally be supplied to BPR together with the replacement unit.

Optional BPR Instrument Cluster Programming Service

BPR offers a dedicated Ford Falcon FG / FG X & Territory SZ Instrument Cluster EEPROM Cloning & Programming Service for this replacement cluster.

This service may include:

• EEPROM data transfer
• Vehicle configuration transfer
• Odometer data transfer where applicable
• Instrument cluster data cloning
• Immobiliser / PATS-related procedures where required
• Bench testing
• Diagnostic verification of the programmed replacement cluster

If the original cluster is completely non-communicating, water damaged, physically damaged, corrupted or has been previously repaired, additional diagnostic or data-recovery labour may be required.

Recommended Before Ordering

For correct fitment confirmation, please provide:

• Vehicle VIN
• Vehicle year
• Engine type
• Model grade – TS or Titanium
• Original cluster part number where available
• Description of the existing cluster fault

Common Reasons for Replacement

A replacement IPC may be required for faults including:

• Instrument cluster completely inoperative
• Intermittent cluster operation
• LCD display failure
• Warning light faults
• Gauge faults
• Communication failure
• Internal electronics failure
• Water or electrical damage
• Previous unsuccessful cluster repair
• Corrupted EEPROM or stored configuration data

Product Details

Brand: Genuine Ford
Product Type: Instrument Panel Cluster / IPC / IC Module
Ford Part Number: ER7Z-10849-DC
Search Number: ER7Z10849DC
Vehicle: Ford Territory SZ MkII
Engine: 2.7L V6 Turbo Diesel
Models: TS & Titanium
Condition: Brand New
Programming: Required unless BPR programming service is selected
Supply: Limited genuine Ford stock

Why Buy From BPR?

Bullet Performance Racing specialises in Ford electronics, diagnostics, module programming and instrument cluster data transfer.

We can provide both the genuine replacement cluster and the specialist programming required to correctly integrate it with the vehicle.

This provides a complete replacement solution for customers and workshops who want to avoid the risks associated with unknown used clusters, incompatible configuration, incorrect odometer data or existing electronic faults.

Important Notice

Professional installation and programming are strongly recommended.

Instrument cluster replacement may involve vehicle-specific configuration, odometer data and security-related information. Compatibility should be confirmed before installation.

Please contact BPR with your VIN if you require fitment confirmation or programming assistance.
