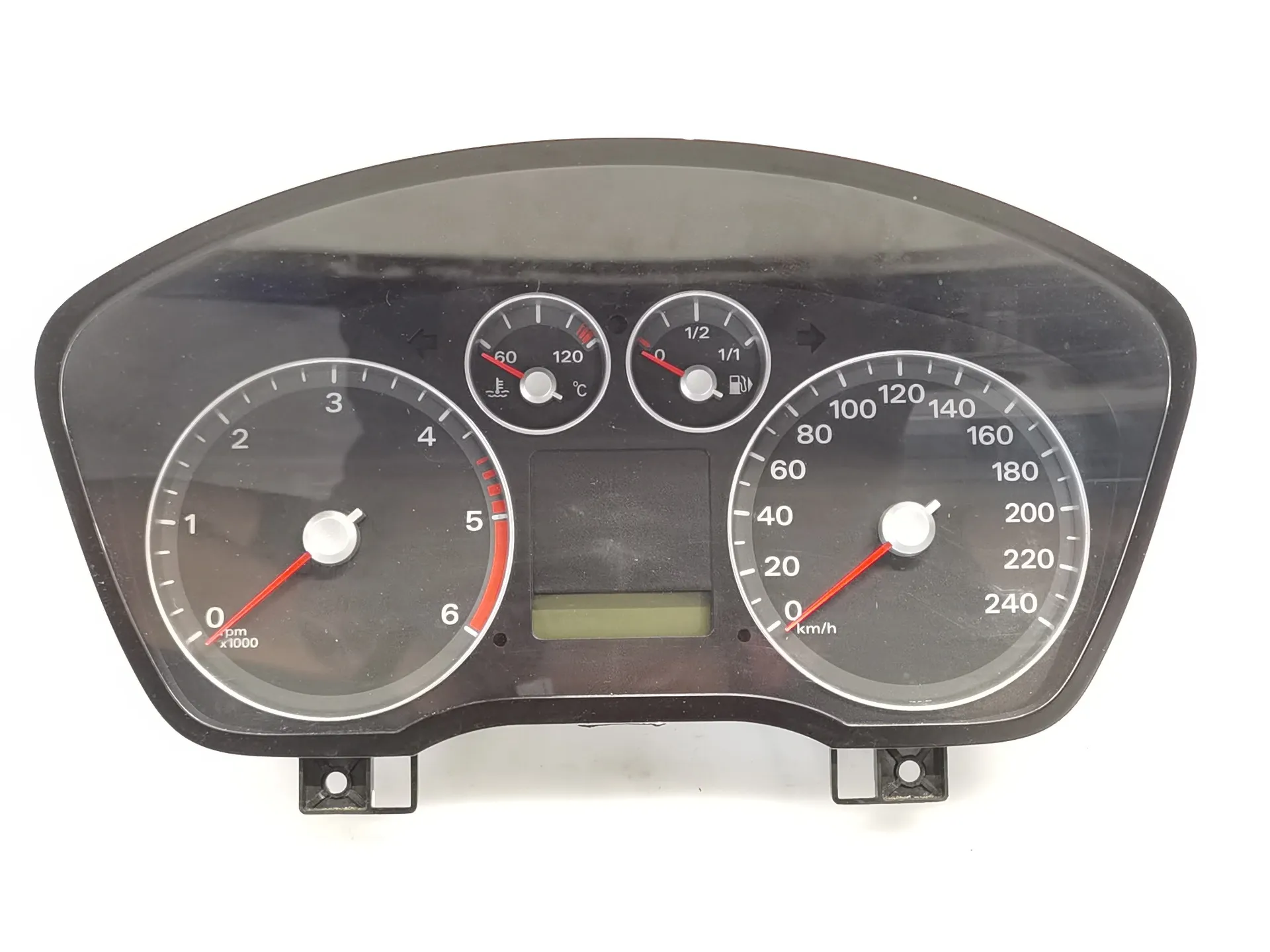

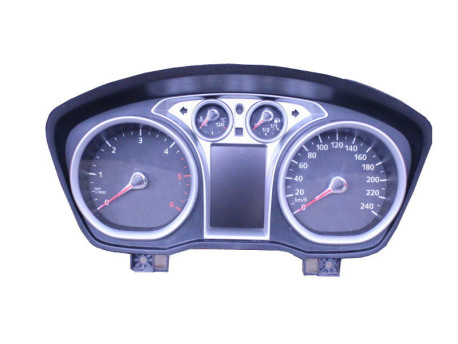

Ford Focus Instrument Cluster Repair Service

Common Ford Focus Instrument Cluster Failure

Ford Focus instrument clusters are a well-known failure point and can cause intermittent or complete loss of dashboard functions. As the fault develops, the cluster may randomly stop working before eventually failing completely.

When the instrument cluster loses communication, all gauges, warning lights and displays may stop operating. In many cases the engine may stall while driving or fail to start because the Passive Anti-Theft System (PATS) can no longer communicate correctly with the vehicle.

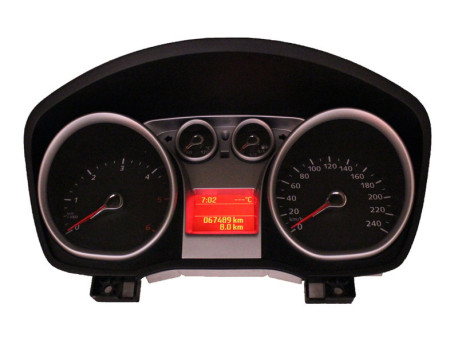

A common indication of cluster failure is a continuously flashing immobiliser warning light together with the odometer displaying ——- instead of the vehicle mileage.

Replacing the instrument cluster with a used unit is rarely a simple solution. Replacement clusters require programming, immobiliser coding and configuration to the vehicle before they will operate correctly. Purchasing a second-hand cluster may also introduce unknown faults.

Our specialist repair service restores your original instrument cluster, retaining your vehicle’s coding, keys and odometer while permanently correcting the common internal electronic failures. Where possible, we engineer improvements into the repaired unit to increase long-term reliability.

Common Failure Symptoms

• Complete loss of instrument cluster operation
• Dashboard warning lights stop working
• Speedometer, tachometer and temperature gauge drop to zero
• Fuel gauge operates erratically
• Odometer displays ——-
• Immobiliser warning light flashes continuously
• Engine stalls while driving
• Engine will not start
• Intermittent starting problems
• Random warning messages including:
  • Engine Malfunction
  • Engine Incident
  • ABS Failure
  • ESP Failure
• CAN communication faults
• Pixelated or distorted LCD display
• Intermittent operation that worsens over time

Common Diagnostic Trouble Codes (DTCs)

Immobiliser & Security

• P1260 – Theft Detected, Vehicle Immobilised
• P1622 – Immobiliser Code Mismatch

Engine Management

• P0120 – Accelerator Pedal Position Sensor
• P0106 – Manifold Absolute Pressure / Barometric Pressure Range Performance
• P0108 – Manifold Absolute Pressure / Barometric Pressure Circuit High Input
• P1000 – OBD-II Drive Cycle Not Completed

Brake & Clutch

• P1935 – Brake Pedal Position Switch
• P1936 – Clutch Pedal Position Switch

Throttle

• P193B – Throttle Position Sensor Signal (CAN Communication)

Vehicle Speed

• P0500 – Vehicle Speed Sensor

CAN Network & Communication

• U0001 – High Speed CAN Communication Bus
• U0101 – Lost Communication with Transmission Control Module (TCM)
• U0121 – Lost Communication with ABS Module
• U0140 – Lost Communication with Body Control Module (BCM)
• U0155 – Lost Communication with Instrument Cluster
• U0423 – Invalid Data Received via CAN Network
• U0405 – Cruise Control Signal Error
• U1900 – CAN Communication Receive Error
• U2012 – CAN Communication Error
• U2197 – Invalid Vehicle Speed Data
• U2200 – Invalid Odometer Data
• U2510 – Invalid Vehicle Security Data

Please Note: Many of the above fault codes are secondary faults generated when the instrument cluster loses communication. They do not necessarily indicate a fault with the module named in the fault code.

Our Repair Process

Every instrument cluster received undergoes a comprehensive inspection and electronic assessment.

Our repair process includes:

• Initial visual inspection
• PCB inspection for common failure points
• Electronic component testing
• Repair of internal circuit faults
• Replacement of failed electronic components where required
• Reinforcement of known weak points
• Bench testing before dispatch
• Final quality assurance inspection

Where practical, reliability improvements are incorporated to reduce the likelihood of repeat failures.

Why Repair Your Original Cluster?

Repairing your original instrument cluster offers several advantages over replacing it:

• Original odometer reading retained
• Original immobiliser coding retained
• No key programming required
• No vehicle configuration required
• Lower cost than replacing and programming another cluster
• Faster turnaround
• Maintains original vehicle authenticity

Service Benefits

• Professional electronic repair
• Original cluster retained
• Fast turnaround (typically 2–3 working days)
• Lifetime warranty with unlimited kilometres on repaired faults
• Australia-wide mail-in service
• Bench tested before return
• Experienced Ford electronic specialists

Additional Charges

The advertised repair price applies to instrument clusters that have not previously been repaired or modified.

Additional charges may apply where the cluster has been subjected to previous repair attempts by another repairer or through DIY repairs. Poor workmanship or unsuccessful repairs can significantly increase the complexity of the restoration.

Examples include:

• Soldering damage
• Lifted or damaged PCB tracks
• Burnt circuit boards
• Missing or incorrect components
• Incorrect replacement parts fitted
• Liquid or contamination damage
• Physical damage caused during disassembly
• Modified circuitry

If additional defects are found during inspection, we will contact you with a quotation before carrying out any extra work. No additional repairs will be completed without your approval.

Warranty

Our repairs are backed by a Lifetime Warranty covering the original fault repaired by Branching Automotive Technologies.

The warranty does not cover:

• Physical damage
• Water or liquid ingress
• Fire or impact damage
• Incorrect installation
• Damage caused by vehicle wiring faults or external electrical faults
• Previous or subsequent third-party repairs
• Faults unrelated to the original repair

Vehicle Compatibility

Suitable for many Ford vehicles including:

• Ford Focus (1998–2015)
• Ford Focus C-Max (2003–2010)
• Ford Kuga (2008–2012)

Additional Ford models fitted with similar instrument clusters may also be supported. Contact us with your VIN or instrument cluster part number to confirm compatibility.

Australia-Wide Mail-In Repair Service

Simply remove your instrument cluster and send it to us. Once received, we’ll inspect, repair and fully bench test the unit before returning it ready for installation.

If you are unsure whether your fault is caused by the instrument cluster, contact us with your vehicle details and fault symptoms. Our experienced technicians can help determine the most likely cause before you send your unit.
