Description

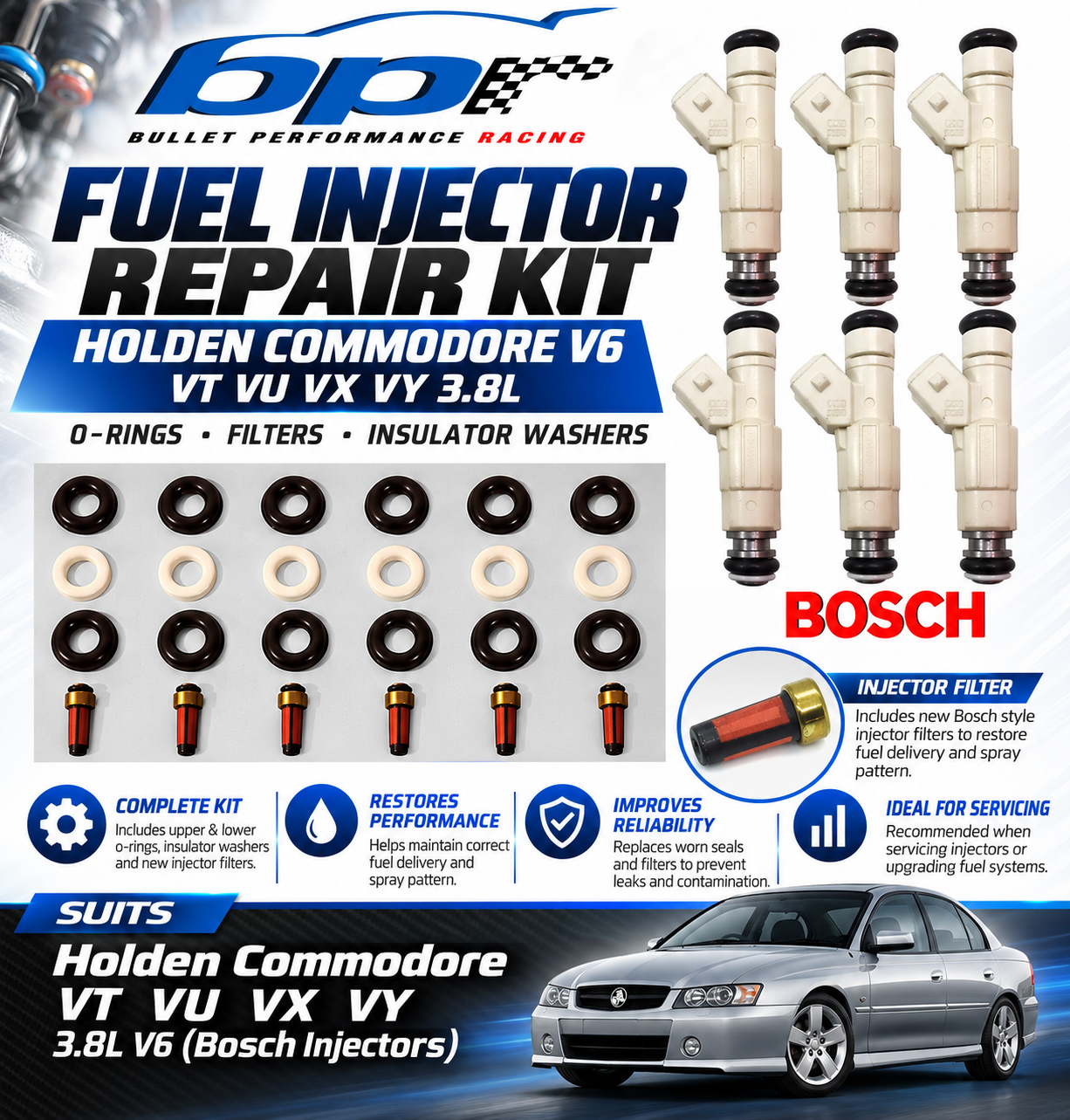

Complete Repair Kit for BOSCH EV6 Style Fuel injectors

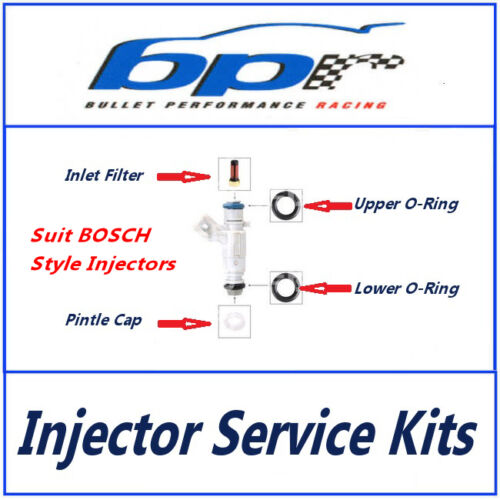

This Kit comes complete with
6x Pintle Caps White Plastic
6x Upper O-Rings Black Viton
6x Inlet Filter Baskets
6x Lower O-Rings Black Viton
1x Installation Instructions
Make Model Series Engine Size Cylinders Year
Holden Commodore VT 3.8L V6 1997-2000
Holden Commodore VU Ute 3.8L V6 2001-2002
Holden Commodore VX 3.8L V6 2000-2002
Holden Commodore VY 3.8L V6 2002-2004
ApplicationsCompare the picture with your injectors to make sure you are getting the right thing. – Suits many models FORD, HOLDEN, NISSAN, SUBARU Vehicles, etc.
We can also install these and perform an ultrasonic injector cleaning and flow test for a minimal additional charge.
If you need multiple kits, let me know, we can provide an excellent package price – filters, o-rings, pintle caps can also be provided in bulk as well. Save $$ over parts store prices!
Here are the installation instructions – you may want to print them up if you purchase this item:
During the entire process, be very careful not to drop the injector or damage the fragile pintle end of the injector in any manner. Also, do not allow any dirt to enter the injector.
Use a small pick to remove the old o-rings. Roll new o-rings on with your fingers. The black o-rings go on the top and botton of the injector.
The correct installation order of parts once removed it the black oring on the bottom end, then the pintle cap /ring.
To remove the inlet screens, find a sheet metal screw that will just screw into the top of the old filter without damaging the injector body. Clamp the head of the screw into a vise and screw the injector several turns onto the screw. Rock the injector back and forth slightly while pulling firmly to remove the filter from the injector.
Tap new filters in with a very small hammer while holding the injector body firmly in your other hand. Do not place the end of the injector against a solid surface while doing this.
Remove pintle caps by popping them off with a utility knife or sidecutters. Again, be cautious to avoid damaging the orifice plate or pintle on the end of the injector.
Use a 10mm socket to seat the new pintle cap onto the end of the injector after spacer and o-ring have been installed.
