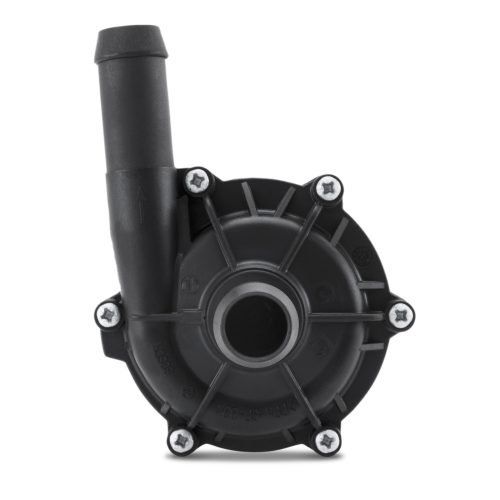

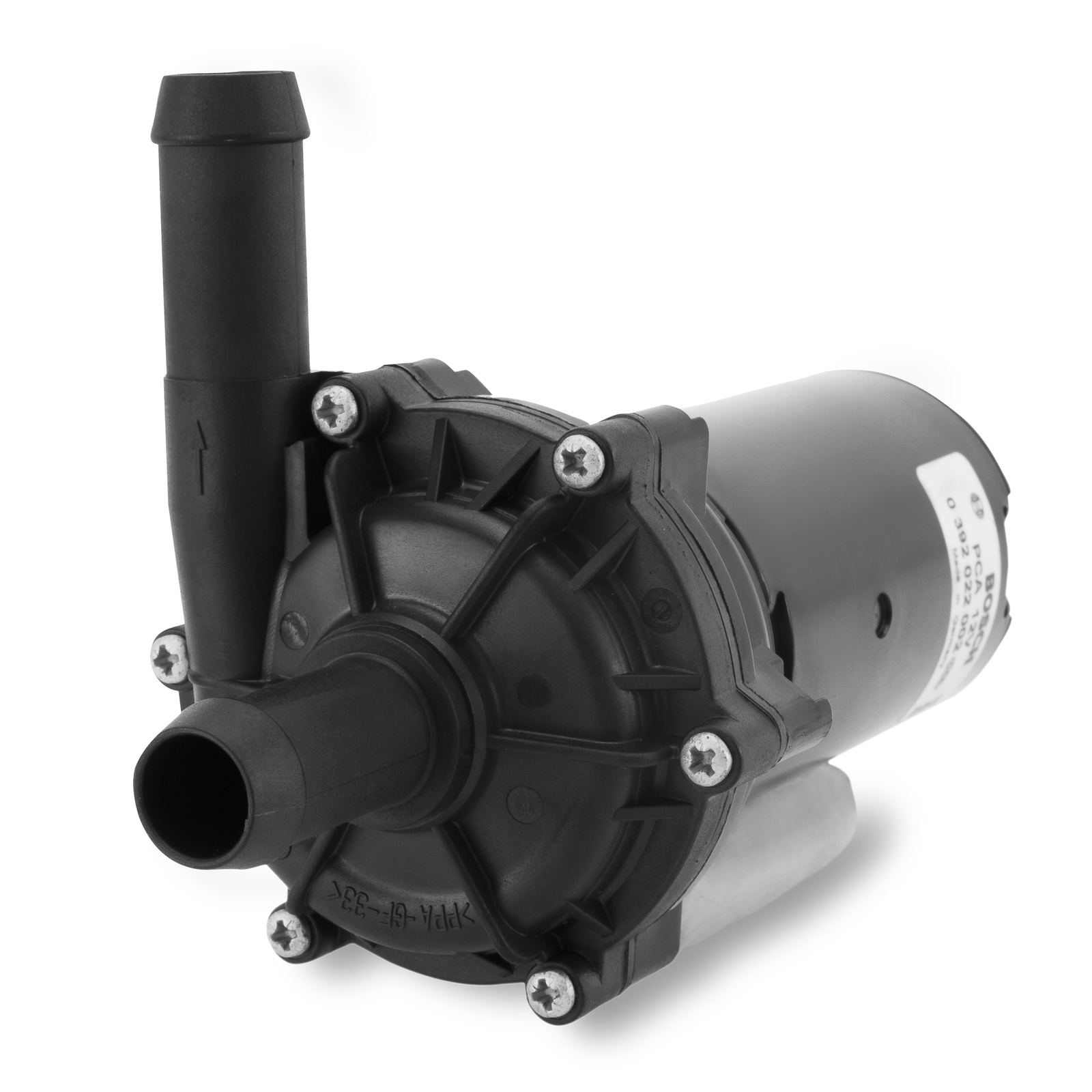

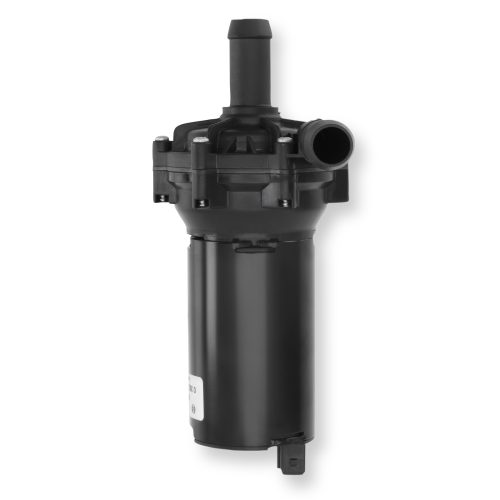

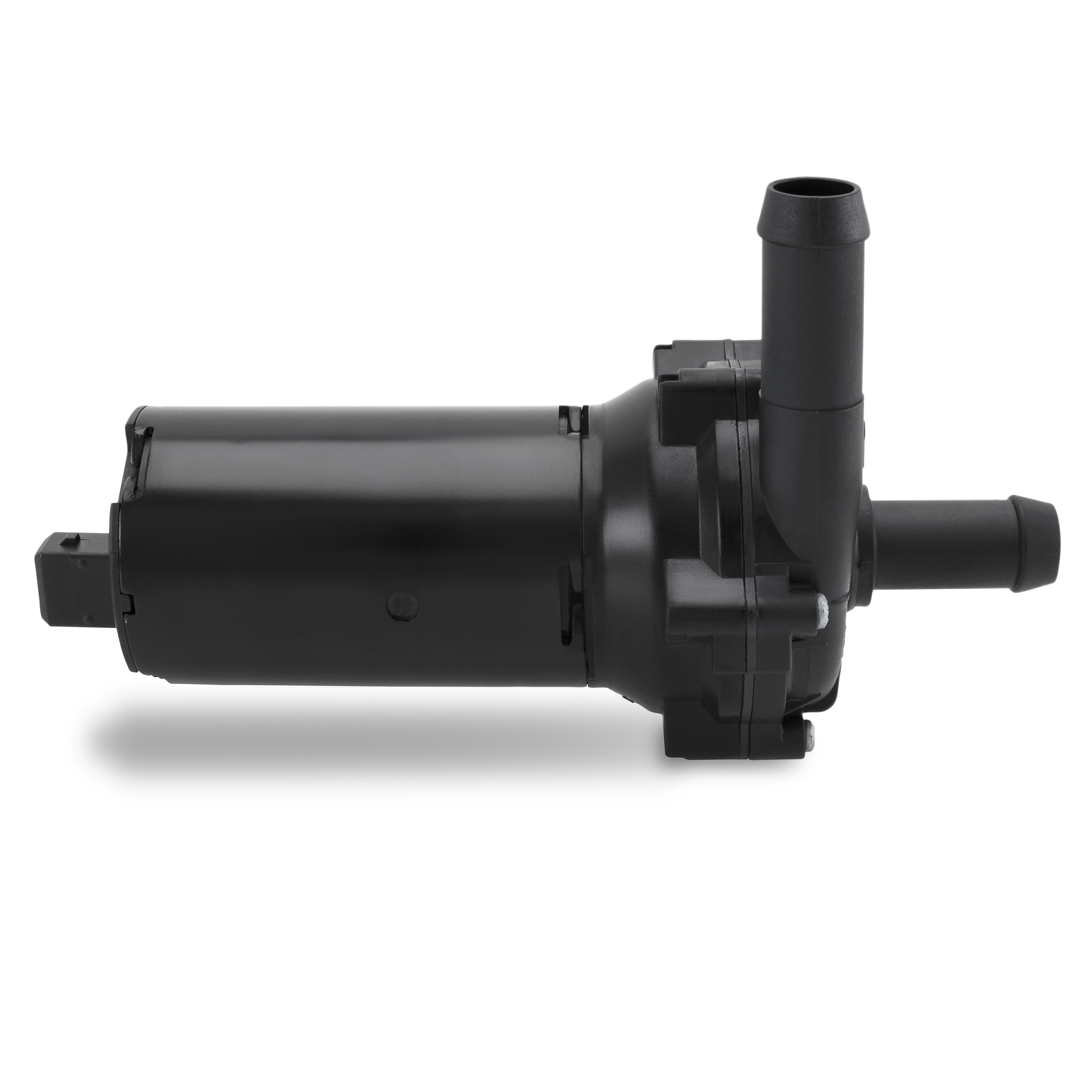

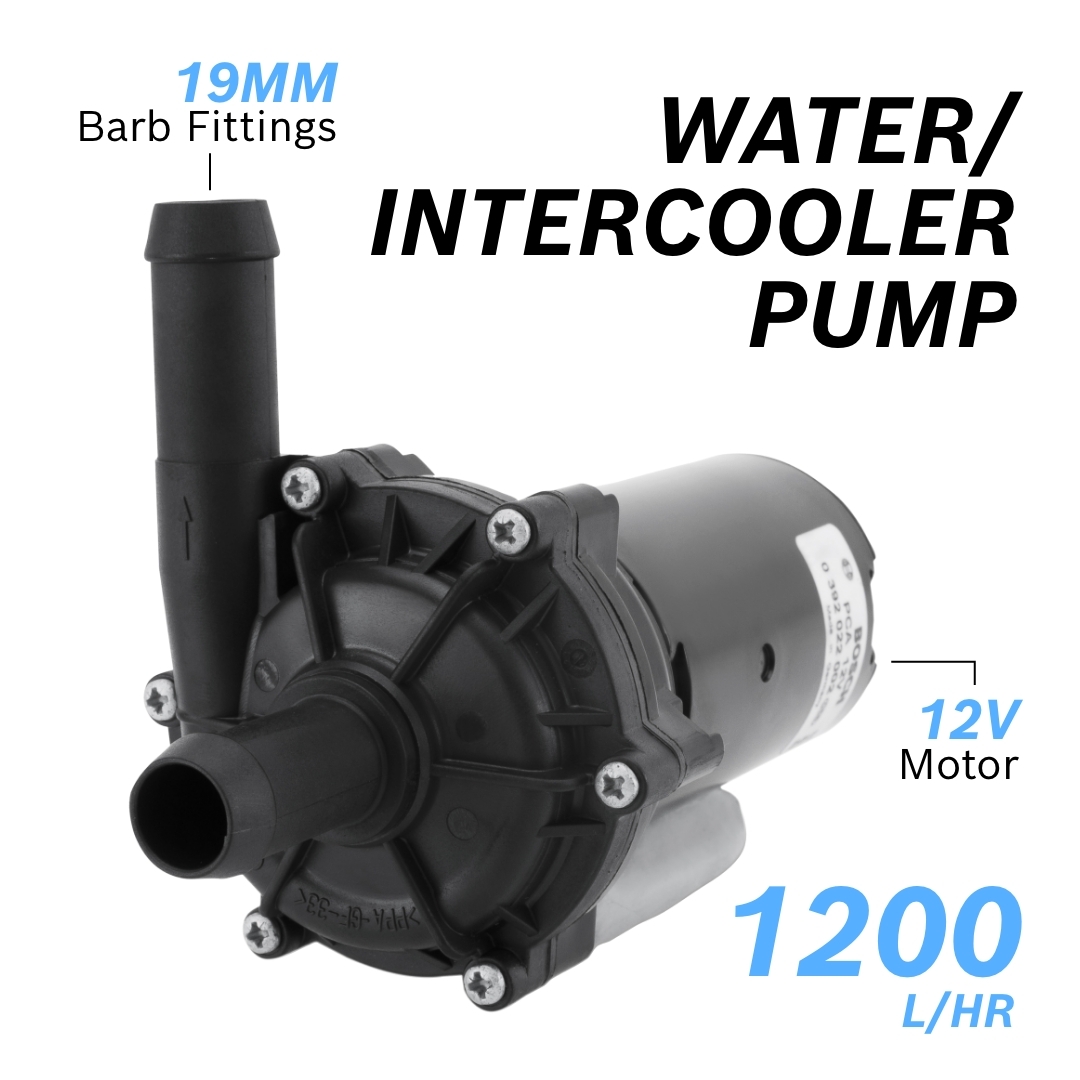

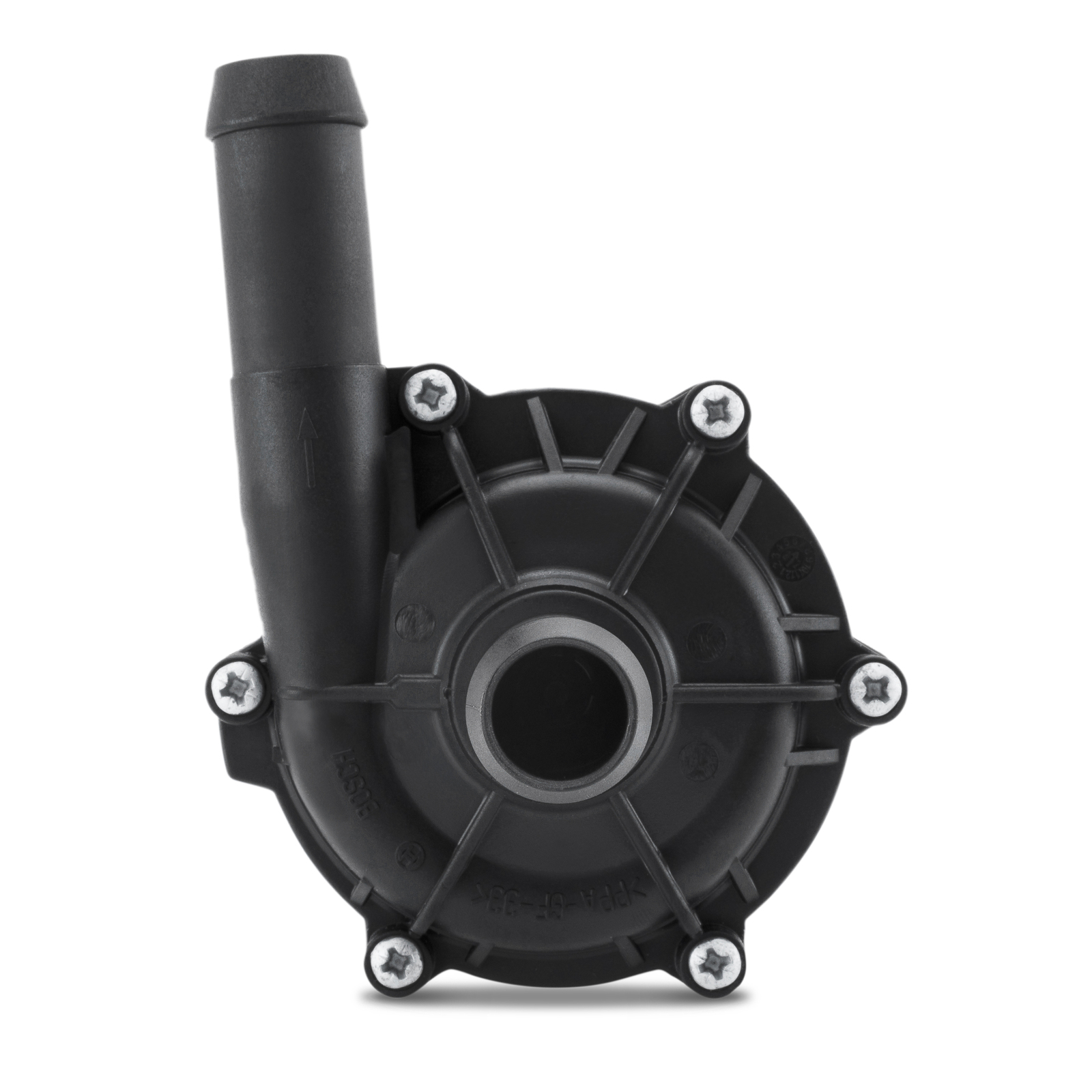

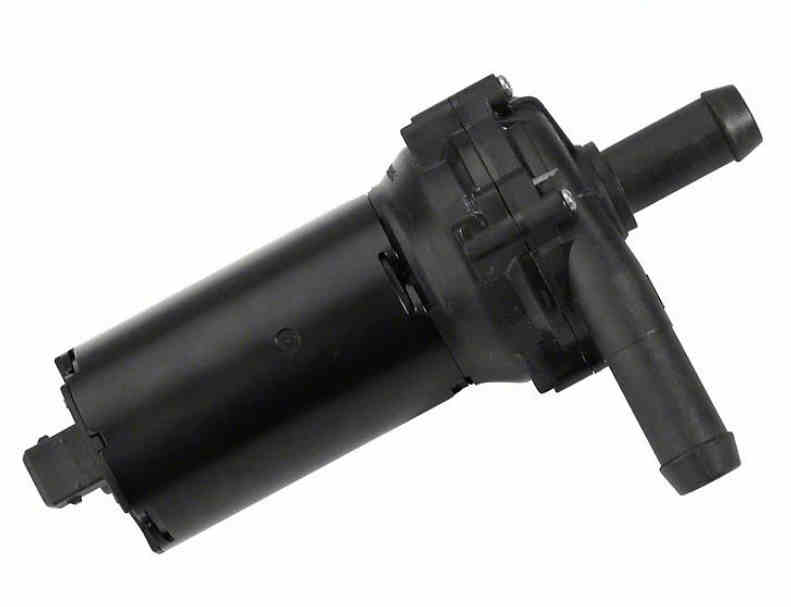

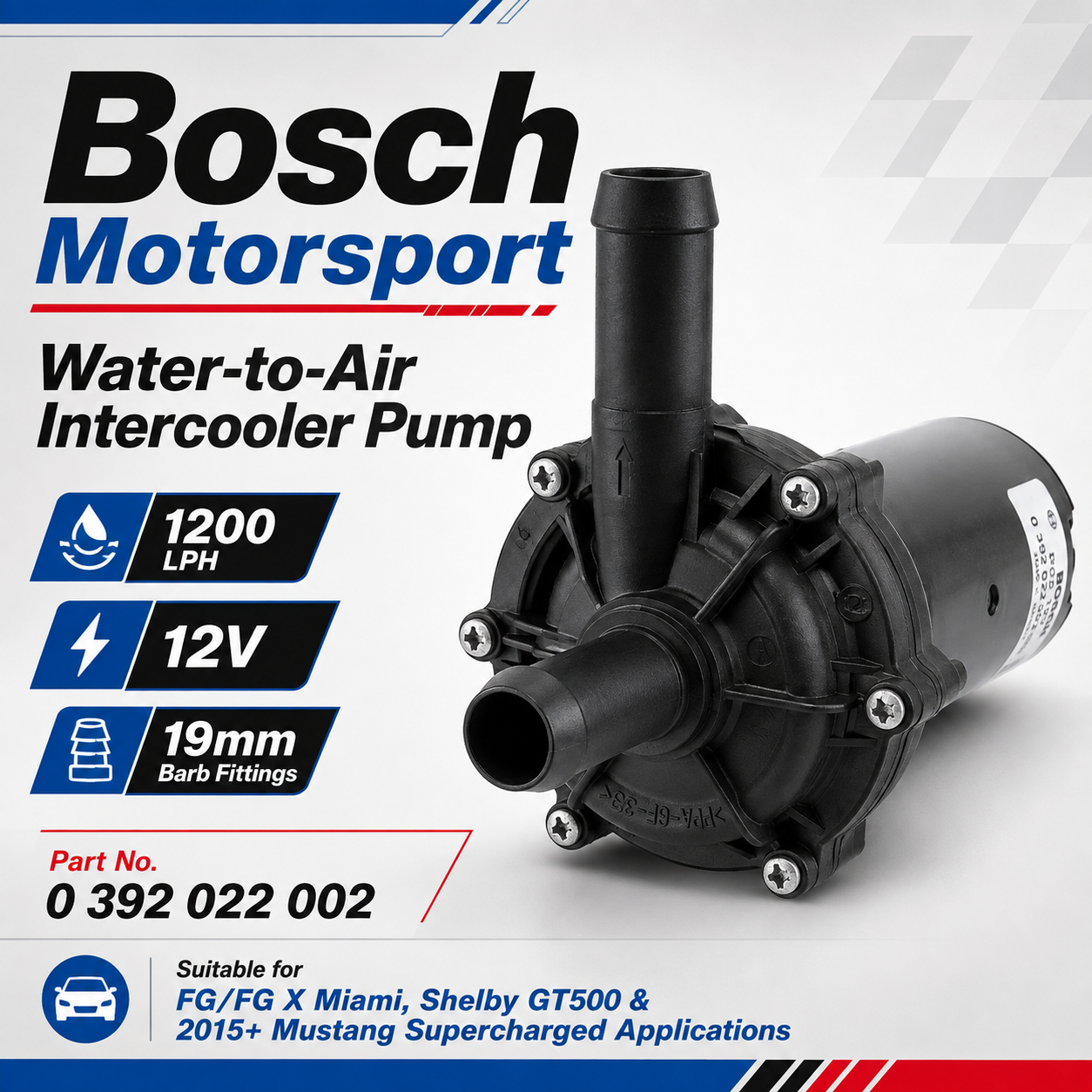

Bosch 1200LPH Water-to-Air Intercooler Pump – Ford Miami, GT500 & Mustang
The Bosch Motorsport 1200LPH Water-to-Air Intercooler Pump is a genuine OEM electric coolant circulation pump designed for high-performance water-to-air intercooler, charge cooler and heat exchanger systems.
Built specifically for automotive coolant circulation, this Bosch electric water pump is a far better choice than adapting a general-purpose or bilge-style pump for intercooler use. It is designed for continuous-duty operation and delivers reliable coolant flow through intercooler cores, reservoirs and front-mounted heat exchangers.
With a nominal flow rate of approximately 1200 litres per hour, the Bosch 0 392 022 002 pump is ideal for both factory replacement and upgraded intercooler cooling systems on supercharged and turbocharged vehicles.
This pump is particularly well suited to Ford FG and FG X 5.0L Miami supercharged vehicles, including cars fitted with upgraded intercoolers, larger heat exchangers or increased intercooler coolant capacity. It is also suitable for a range of Shelby GT500 and 2015+ Ford Mustang supercharged applications, depending on the intercooler plumbing and system configuration.
Key Features
- Genuine Bosch OEM intercooler water pump
- Bosch part number 0 392 022 002
- Approx. 1200 LPH coolant flow
- 12V electric operation
- Designed for water-to-air intercooler systems
- Suitable for intercooler, charge cooler and heat exchanger circulation
- Continuous-duty S1 operating mode
- Automotive-grade OEM construction
- Ideal for upgraded supercharger intercooler systems
- Suitable for turbocharged and supercharged applications

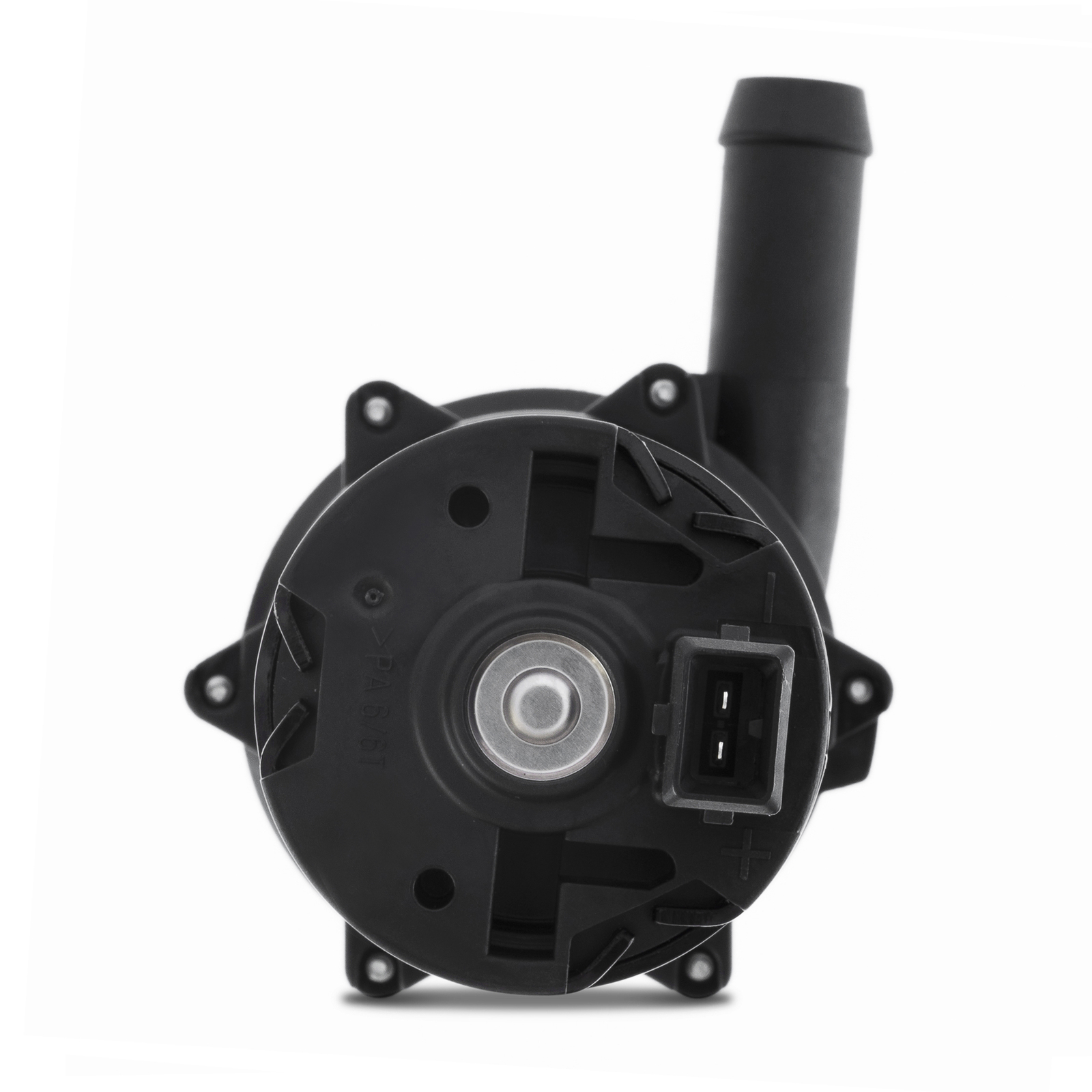

- EV1-style electrical connector
- Excellent option for high-performance intercooler upgrades
Suitable Applications
The Bosch 1200LPH intercooler pump is ideal for:
- Ford FG 5.0L Miami supercharged vehicles
- Ford FG X 5.0L Miami supercharged vehicles
- Miami supercharger intercooler upgrades
- Upgraded FG / FG X intercoolers and heat exchangers
- Shelby GT500 intercooler systems
- 2015+ Ford Mustang supercharged applications
- Aftermarket supercharger kits
- Water-to-air intercooler systems
- Charge cooler systems
- Larger front-mounted heat exchangers
- Auxiliary intercooler coolant circuits
- Custom turbocharged and supercharged applications
This pump is especially useful when upgrading the factory intercooler system with a larger heat exchanger, upgraded intercooler core, larger reservoir or modified coolant circuit, where reliable and consistent coolant circulation is required.
Why Upgrade Your Intercooler Water Pump?
A water-to-air intercooler system relies on coolant circulation to transfer heat away from the intercooler core and into the heat exchanger.
When intercooler capacity is increased, maintaining adequate coolant flow becomes increasingly important. Poor circulation can reduce the efficiency of the cooling system and allow intercooler coolant temperatures to rise during sustained boost or high-load driving.
The Bosch 1200LPH intercooler circulation pump provides a reliable OEM-quality solution for upgraded cooling systems, helping move coolant efficiently through the intercooler core and heat exchanger.
For Ford Miami, Shelby GT500 and supercharged Mustang applications, it is an excellent choice when upgrading or building a dedicated water-to-air intercooler cooling circuit.

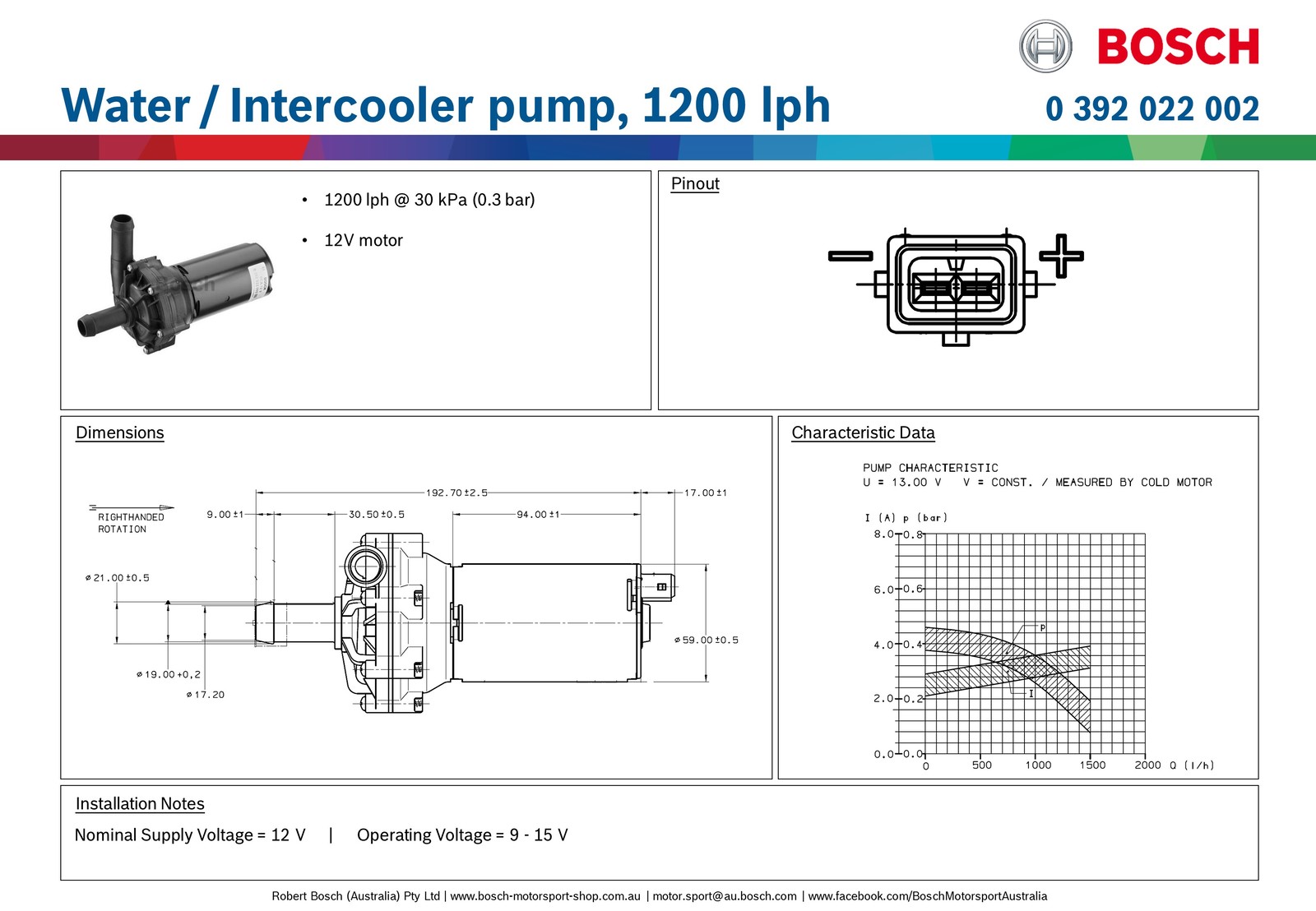

Specifications
| Specification | Details |
|---|---|
| Manufacturer | Bosch |
| Bosch Part Number | 0 392 022 002 |
| Nominal Voltage | 12V |
| Nominal Flow | Approx. 1200 LPH |
| Delivery Pressure | 0.3 bar |
| Direction of Rotation | R |
| Operating Mode | S1 – Continuous Duty |
| Degree of Protection | IP5K4* |
| Weight | Approx. 1.0 kg |
| Connector Type | EV1 |
*Degree of protection applies when the correct receptacle housing is installed.
Installation Notes
Correct pump mounting, hose routing and system bleeding are important for reliable operation.
For best results:
- Mount the pump securely.
- Ensure the pump has a consistent coolant supply.
- Avoid restrictive hose routing and fittings.
- Bleed all air from the intercooler coolant circuit.
- Use suitable automotive coolant hose.
- Ensure wiring, fuse and relay capacity are appropriate.
- Confirm hose size, fittings and connector requirements before installation.
Package Contents
- 1 × Genuine Bosch 1200LPH Electric Intercooler Water Pump
Important Information
This is a genuine OEM Bosch pump and is supplied without installation instructions or technical documentation.
The electrical connector may be available separately.
Vehicle and supercharger compatibility can vary depending on the intercooler system, hose routing and fittings used. Check installation requirements before ordering.
