Hantek AC/DC Current Clamp CC-65 – Automotive Test Equipment

Original price was: $115.00.Current price is: $89.95. inc GST

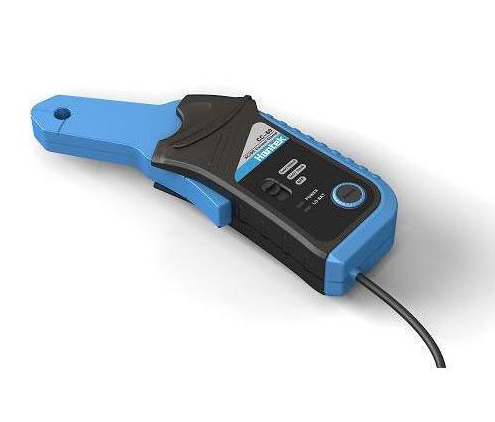

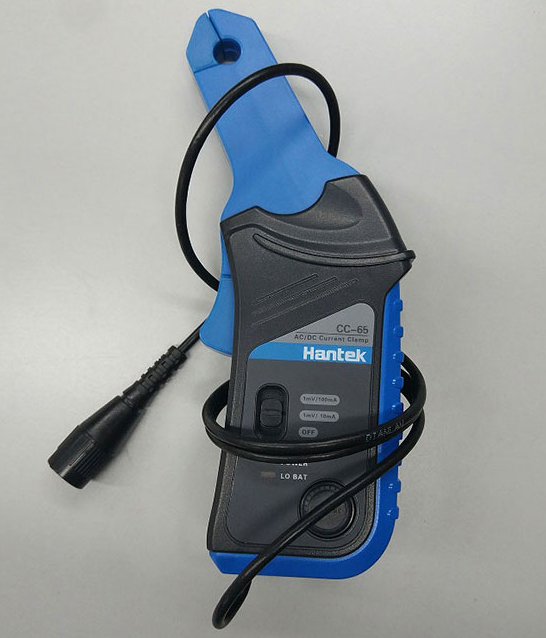

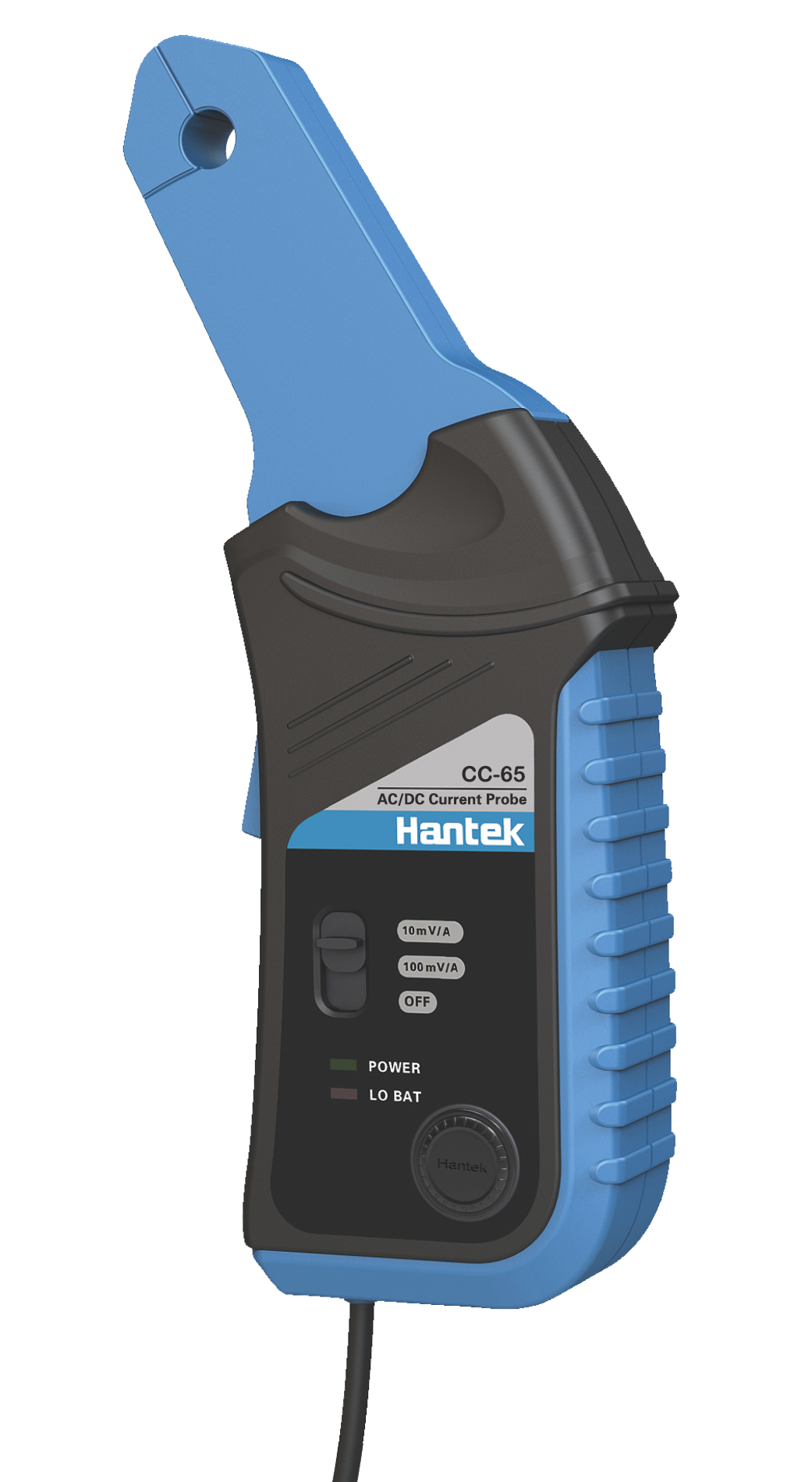

AC/DC Current Clamp CC-65

AC/DC Current Clamp, 20kHz Bandwidth, 1mV/10mA, 65A; It is a transducer which allows your multimeter to measure current data and enable your oscilloscope to measure the current waveforms. Supplied with coil cable with straight banana plug or BNC plug.

2 in stock

SKU: HANTEK-CC-65 Categories: ,

Description

AC/DC Current Clamp, 20kHz Bandwidth, 65A,10mV/A, 100mV/A

Feature
AC/DC frequency range: Up to 20 kHz
Effective Measurement Range: 20mA to 65A DC
It is a transducer which allows your multimeter to measure current data and enable your oscilloscope to measure the current waveforms.
Its current transducer is composed by permalloy and hall element, which linearly transform the AC or DC current to AC or DC current voltage. And if connect to an oscilloscope by BNC type connector, you’re able to observe the current waveforms; If connect to a multimeter by banana type connector, you can obtain the current data.

Application

Power circuit measurement and malfunction analysis;
Motor drive of frequency converter (or other electronics) measurement;
Power electronics equipments measurement.

Function Picture

 Specification



DCA Range 100mV /A ±(1.5%±5mA) 10mA ~ 20A
10mV/A ±(2%±20mA) 100mA ~ 40A;
±(4%±0.3A) 40A ~ 65A
ACA Range 100mV /A ±(2%±30mA) 100mA ~ 10A (40Hz ~ 2KHz);
±(4%±30mA) 100mA ~ 10A (2KHz ~ 10KHz);
±(6%±30mA) 100mA ~ 10A (10KHz ~ 20KHz);
±(8%±30mA) 10A ~ 15A (40Hz ~ 20KHz)
10mV/A ±(2%±30mA) 100mA ~ 40A (40Hz ~ 1KHz);
±(4%±30mA) 100mA ~ 40A (1KHz ~ 2KHz);
±(6%±30mA) 100mA ~ 40A (3KHz ~ 5KHz);
±(8%±0.3A) 40A ~ 65A (40Hz ~ 20KHz)
Captured Conductor Size 9mm maximum
Low Battery Indictor red LED lighting
Operating Temperature 0℃to 50℃70% R.H.
Storage Temperature -20℃ to +70℃, 80% R.H.
Battery Type 9V DC
Weight 250 gm typical
Dimensions 195mm(H) x 70mm(W) x 33mm(D)
Output Supplied with coil cable with straight banana plug or BNC plug.

Additional information

Weight .5 kg
Dimensions 15 × 25 × 7 cm
